labnique
5MP USB 2.0 Eyepiece Camera, Digital Microscope Camera with Ring Adapters and Calibration Slide
5MP USB 2.0 Eyepiece Camera, Digital Microscope Camera with Ring Adapters and Calibration Slide
SKU:SCMOS-5MP
Regular price
$119.95
Regular price
Sale price
$119.95
Unit price
/
per
Couldn't load pickup availability
- 5.0MP Aptina CMOS Sensor: The 5.0MP Aptina CMOS sensor ensures high-resolution imaging, providing clear and detailed visuals for precise observation and analysis.
- High-Speed USB 2.0 Interface: The high-speed USB 2.0 interface supports fast data transfer and high frame rate video display, ensuring smooth and uninterrupted screen performance.

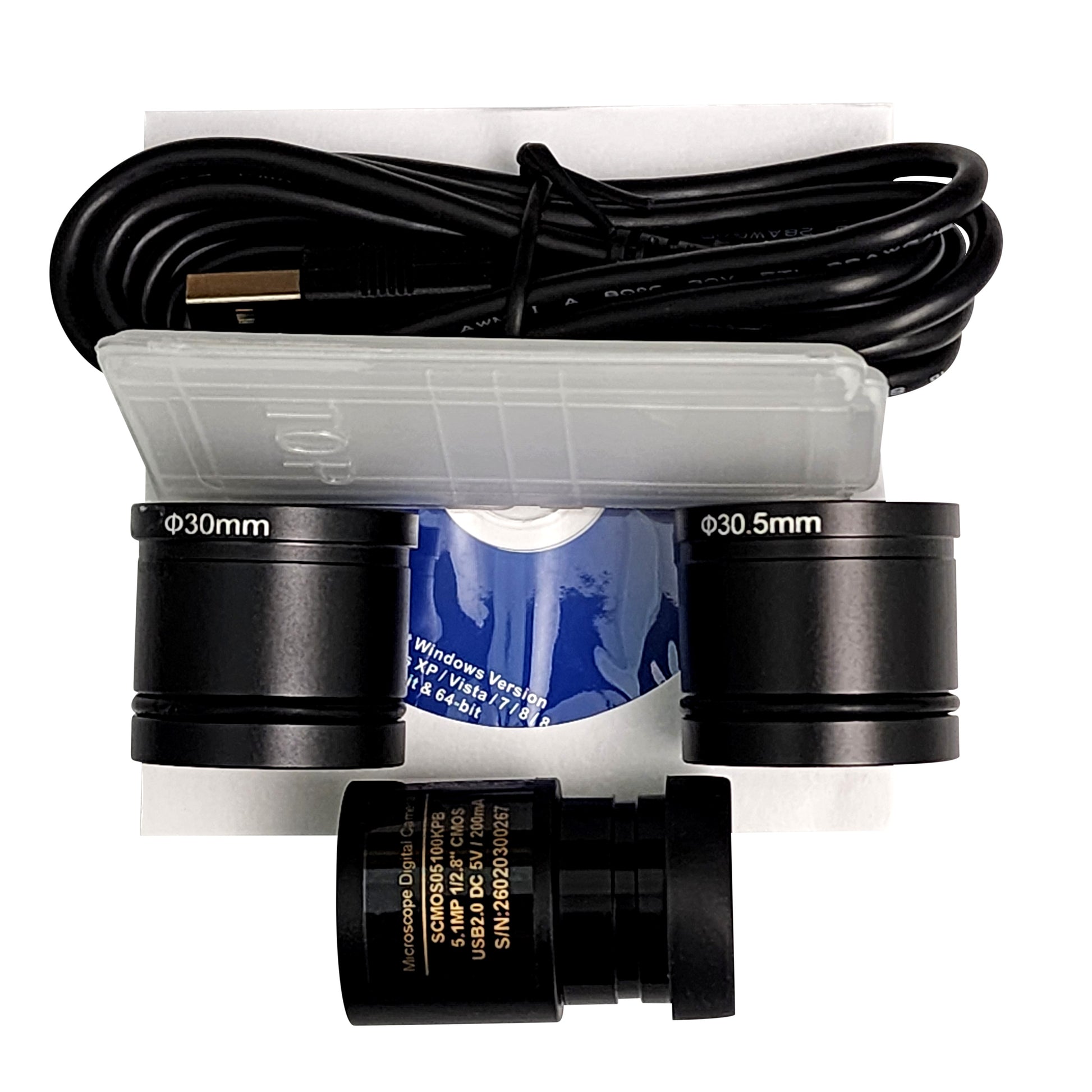

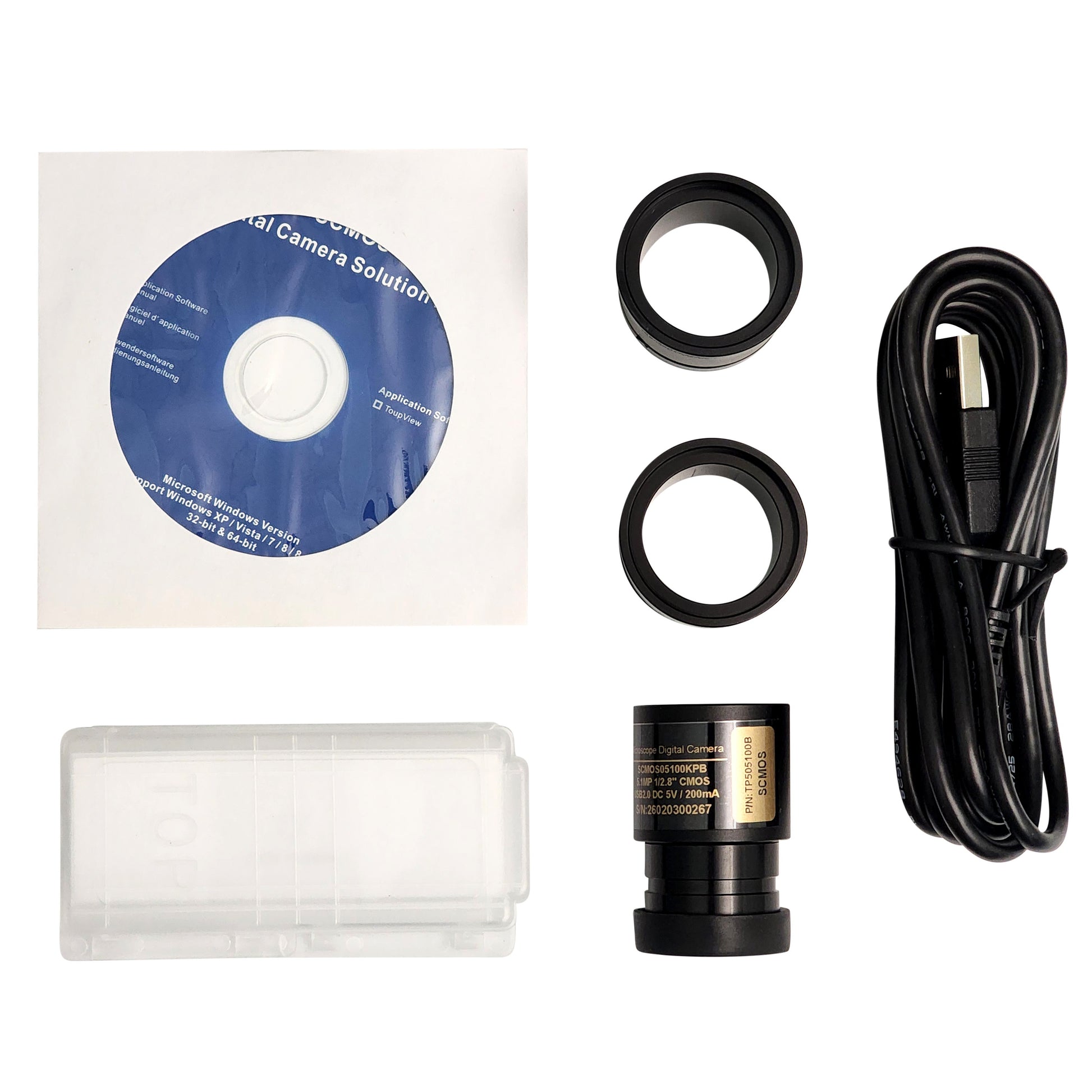

- 23.2mm 30mm 30.5mm Adapters: The included ring adapters with diameters of 23.2mm, 30mm, and 30.5mm allow the camera to be easily mounted on a variety of microscopes, enhancing compatibility and flexibility.
- Calibration Slide: The included calibration slide has resolution of 0.01mm.
Specifications
|
Sensor
|
5.0MP/Aptina(C)
|
|
Size(mm)
|
1/2.5“ (5.70x4.28)
|
|
Pixel(μm)
|
2.2x2.2
|
|
FPS/Resolution
|
2fps/2592x1944;3fps/2048x1536;5fps/1600x1200;7.5fps/1280x1024
|
|
Exposure
|
Auto
|
|
Spectral Range
|
380-650nm (with IR-filter)
|
|
White Balance
|
Auto
|
|
Capture/Control API
|
Native C/C++,Directshow,Twain
|
|
Recording System
|
Still Picture and Movie
|
|
Cooling System
|
Natural with High Performance Cooling Structure
|
|
Operating System
|
Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit);Mac OSX;Linux
|
|
Drive
|
Included
|
