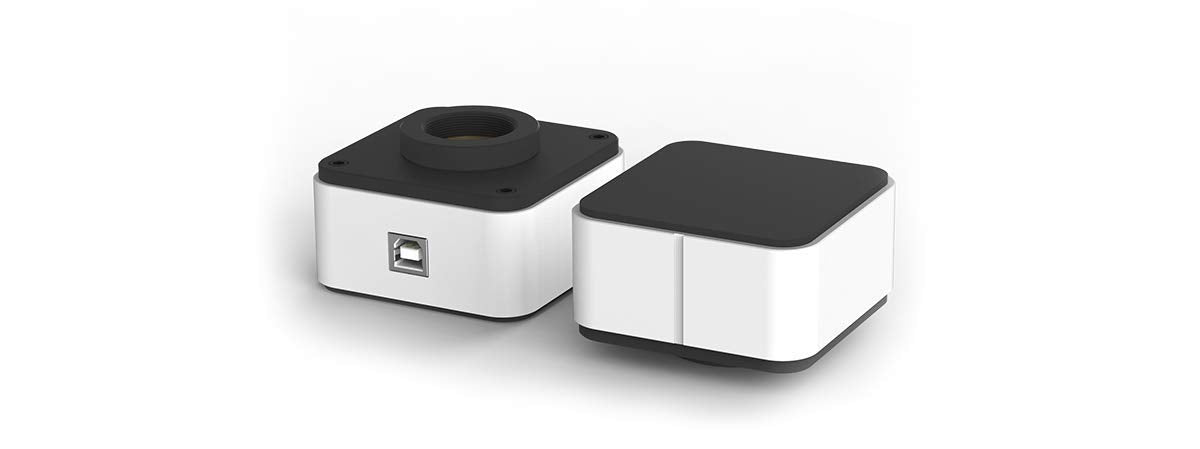

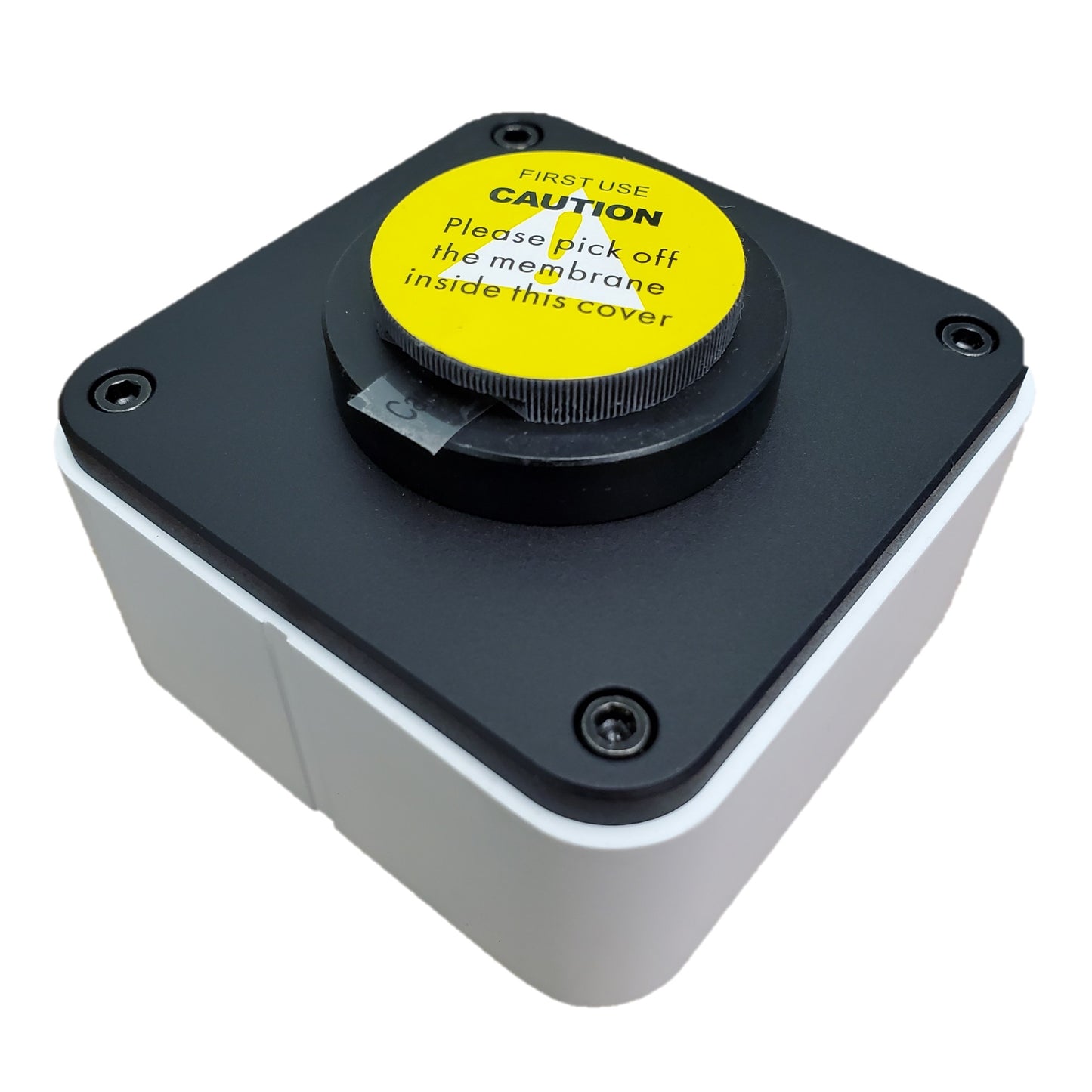

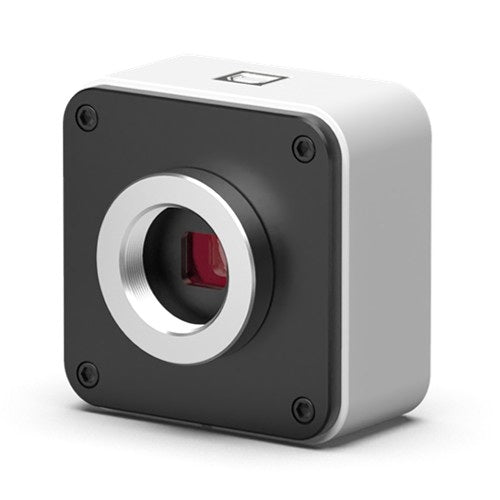

5MP CMOS Color Graphics Accelerated Microscope Camera

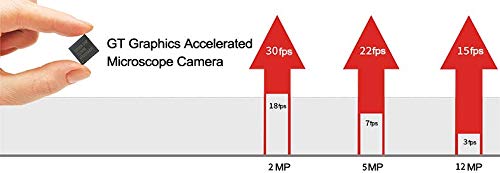

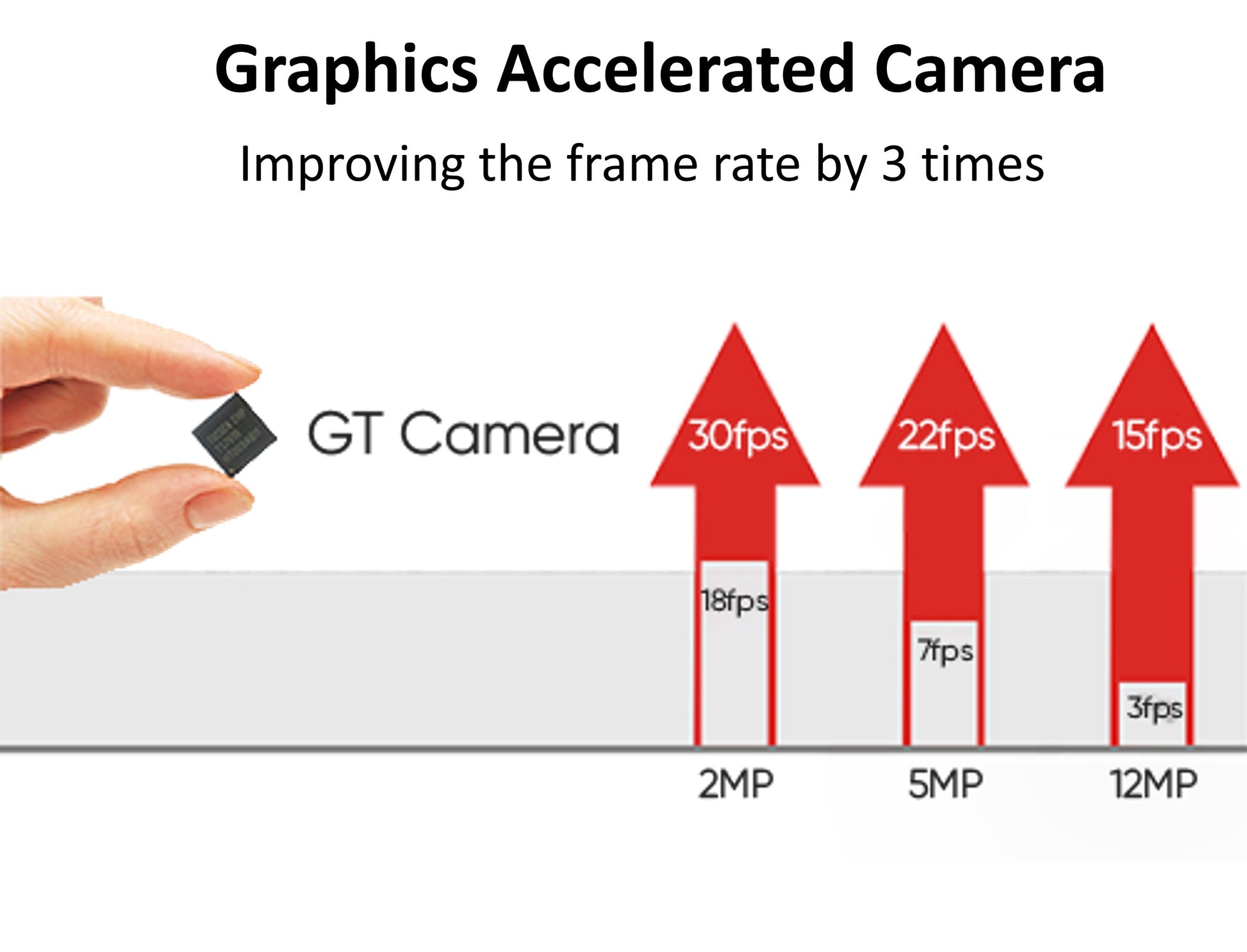

The 5MP CMOS Microscope Camera is a high-speed imaging solution engineered for uncompressed, high-fidelity digital documentation. Featuring innovative onboard graphics acceleration, it delivers smooth 2592 x 1944p video at 22FPS, eliminating the lag typically found in high-resolution USB 2.0 systems. This professional-grade camera is optimized for superior color accuracy and is fully compatible with any microscope featuring a standard C-Mount photoport or 23.2mm eyepiece tube.

What’s included:

• 1x 5MP C-Mount Microscope Camera
• 1x High-Speed USB 2.0 Cable

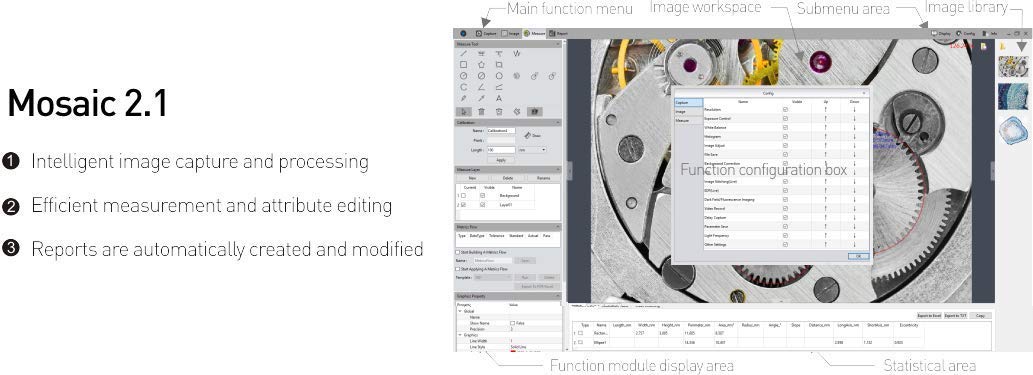

• 1x Professional Imaging Software (Mosaic V2.0)

Complete your workstation with these compatible Labnique essentials:

• C-Mount Microscope Adapter for secure optical coupling to your trinocular port.
• 0.5x Reduction Lens to match the camera sensor's field of view with your eyepieces.
• Calibration Slide for precise measurement and professional software scaling.

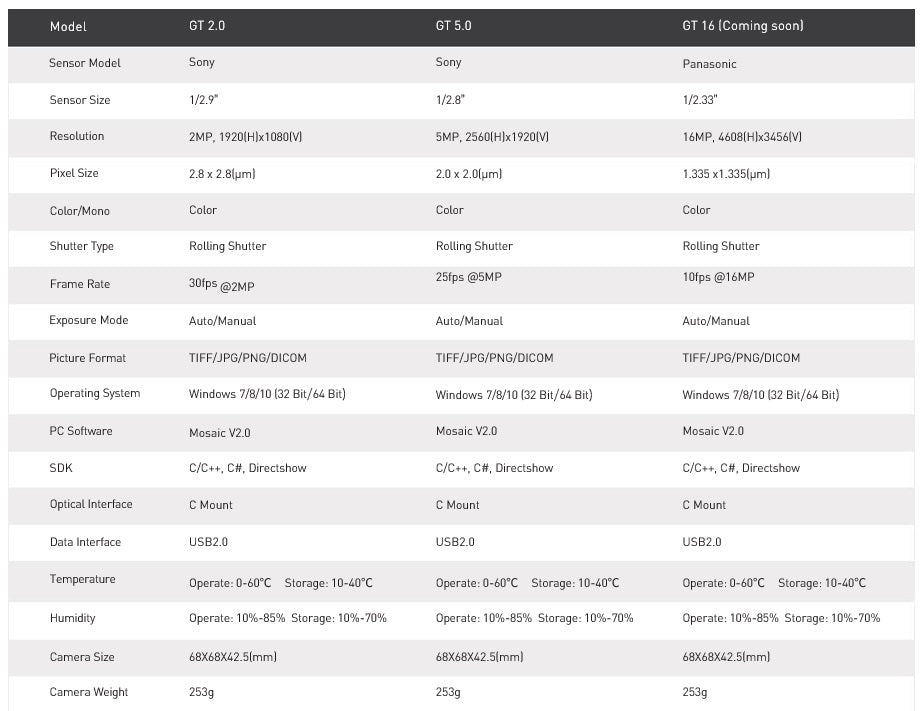

Technical Data:

• Sensor Type: Sony 1/2.8" High-Sensitivity CMOS Sensor
• Resolution: 5.0 Megapixels (2592 x 1944)
• Frame Rate: 22FPS @ Full Resolution

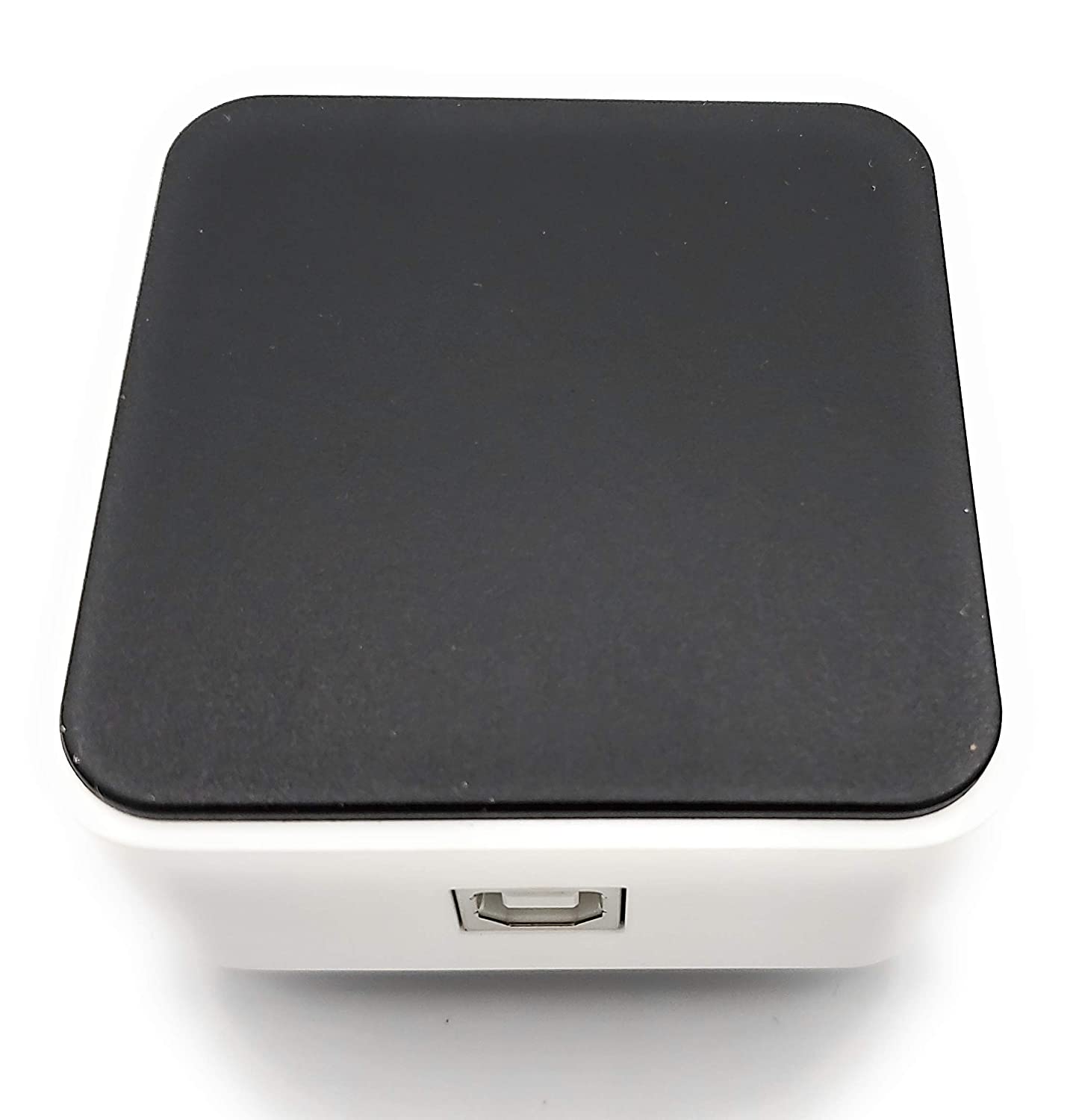

• Interface: USB 2.0 (Graphics Accelerated)
• Mounting Compatibility: Standard C-Mount (1" / 25.4mm)
• Microscope Compatibility: Trinocular ports (C-Mount) or Binocular/Monocular eyepiece tubes (via adapter)
• OS Compatibility: Windows XP/7/8/10/11 (32 & 64 bit)

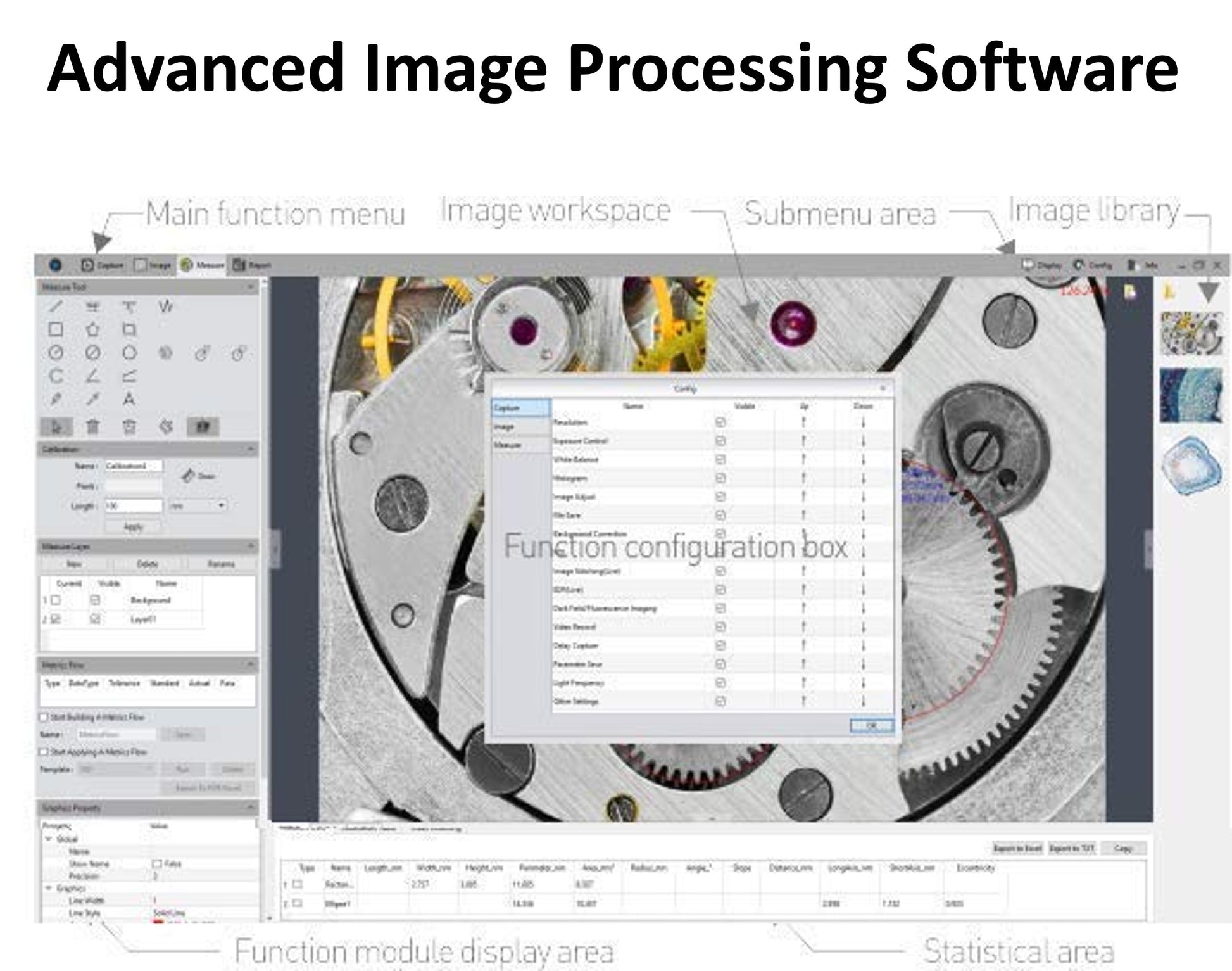

• Software: Includes Mosaic V2.0; Supports SDKs for C/C++, C#, and DirectShow
• Exposure Control: Automatic / Manual
• Operating Temperature: 0°C to 60°C

Applications:

Biological research, clinical diagnostics, materials science, high-precision industrial inspection, and educational laboratory environments.
