0.5X Microscope Eyepiece C mount Camera Reduction Lens for Microscope with Adapter Rings

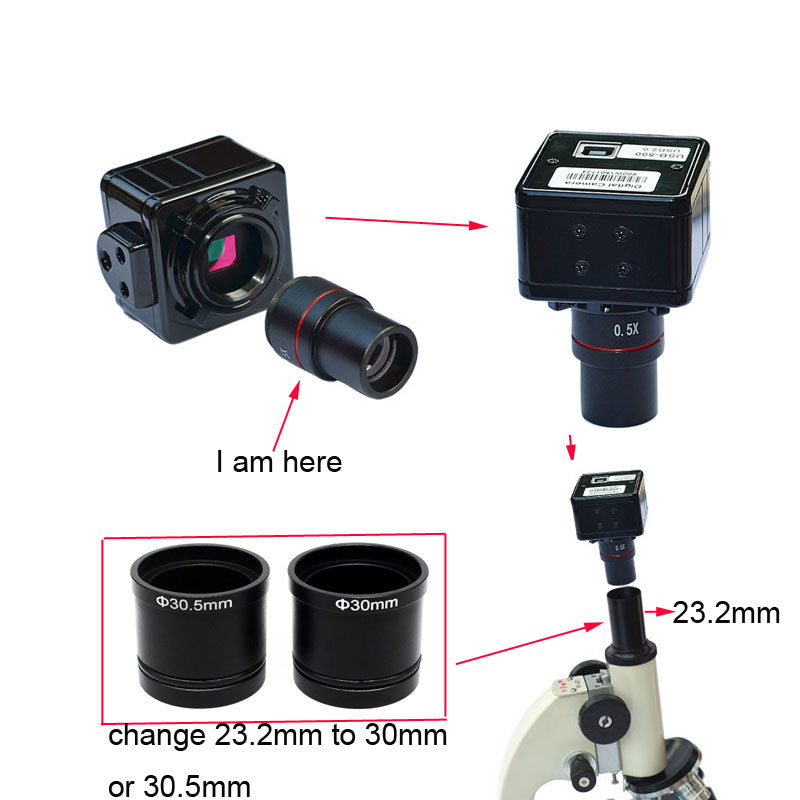

The Labnique 0.5X Microscope Eyepiece Adapter  is a versatile optical solution designed to connect digital cameras to a wide range of microscopes. Featuring a high-quality 0.5x reduction lens, it effectively doubles the field of view for digital sensors (optimized for 1/2", 1/2.5", and 1/3" sensors for a full, uncropped view), ensuring your captured images closely match the perspective seen through the eyepieces. This professional-grade adapter provides a secure, vibration-free bridge between your microscope and any standard C-mount camera.

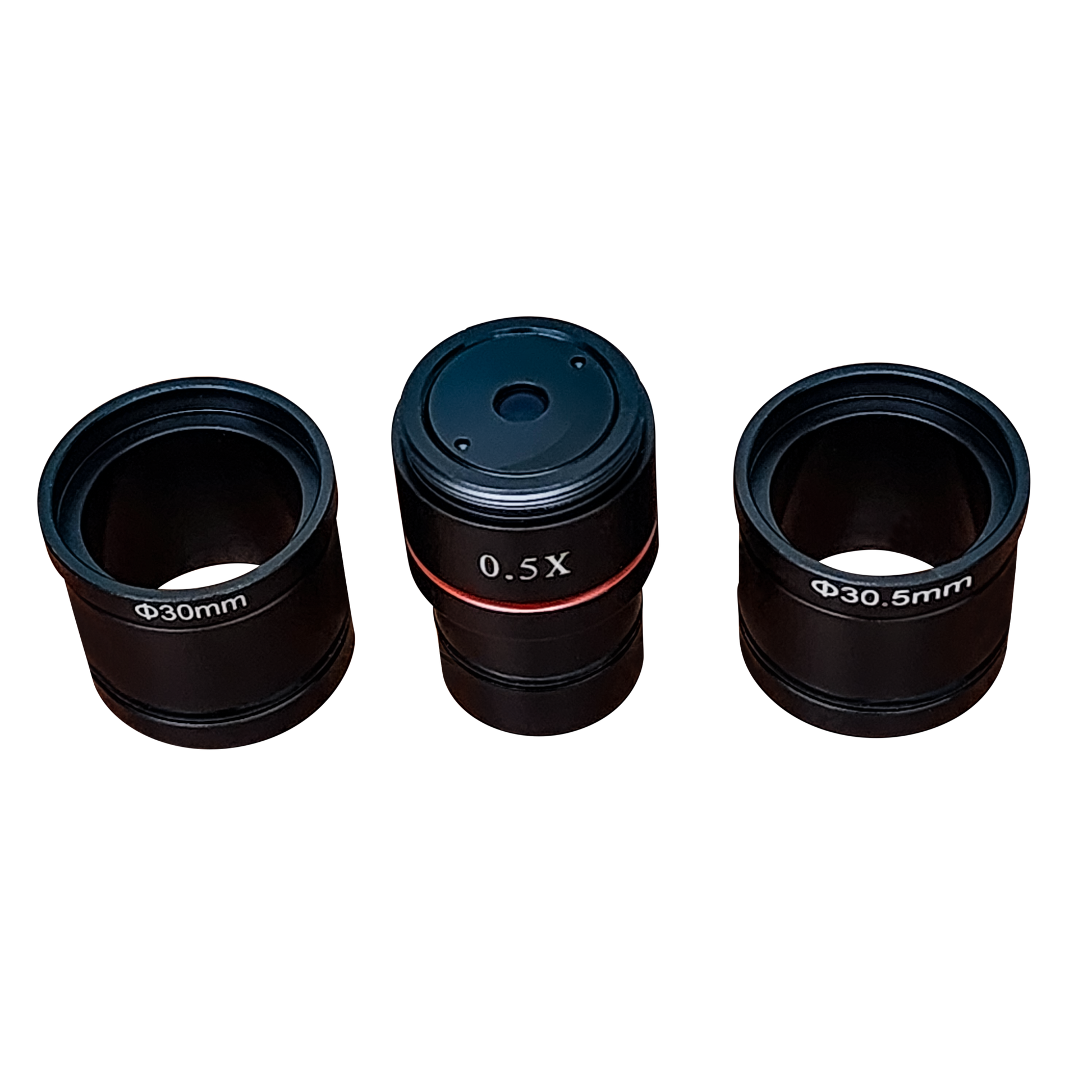

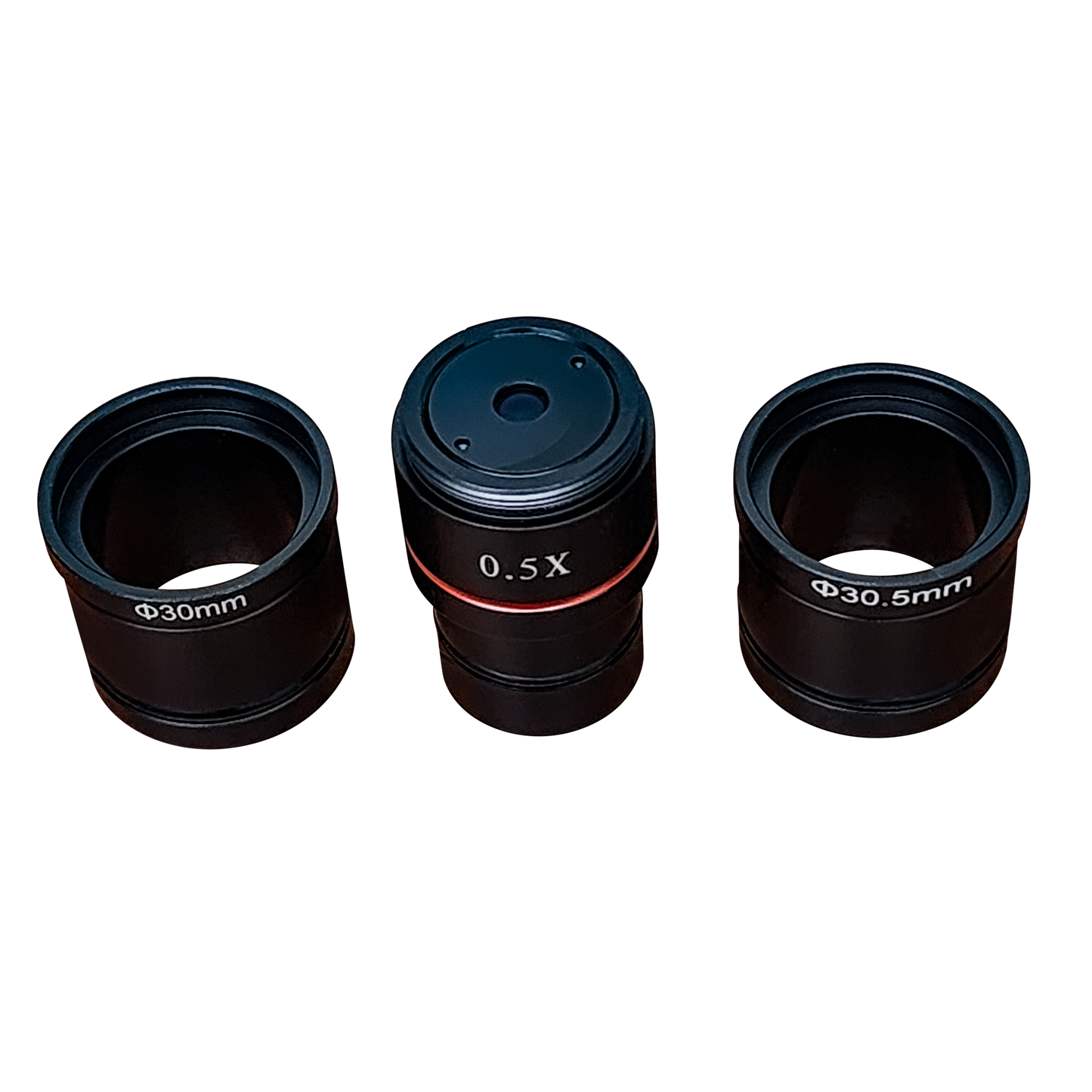

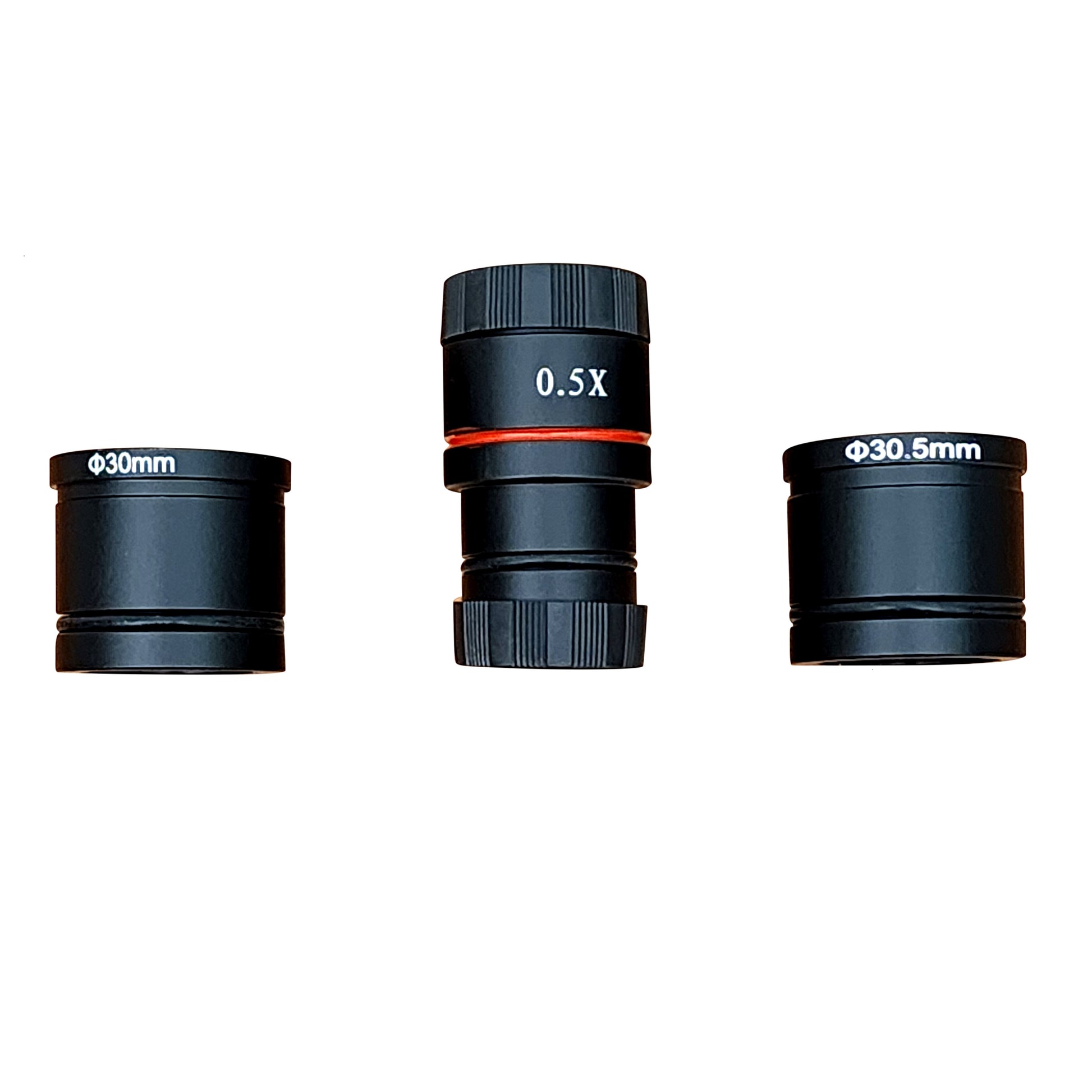

What’s included:

• 1x 0.5X C-Mount Eyepiece Adapter

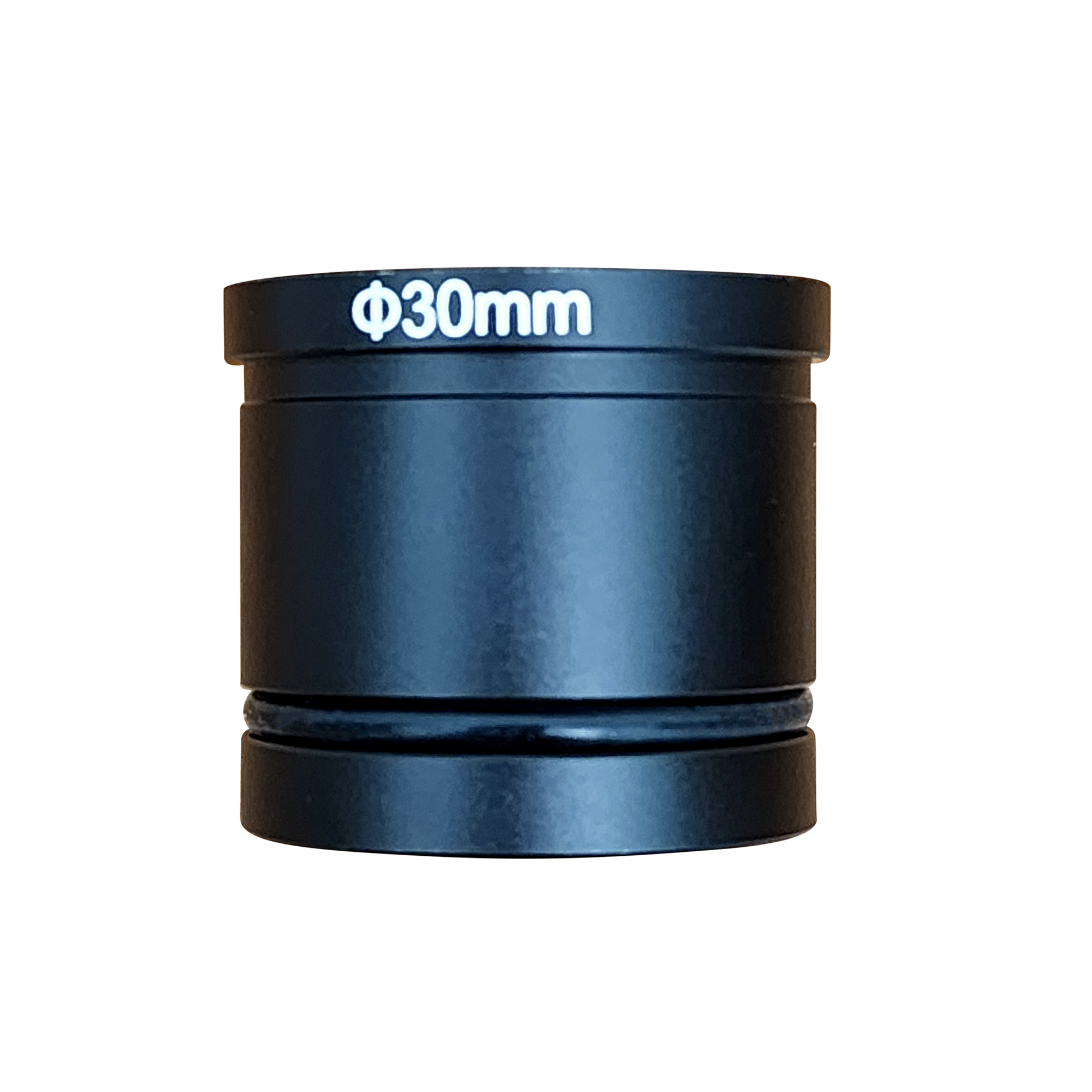

• 1x 23.2mm to 30.0mm Adapter Ring

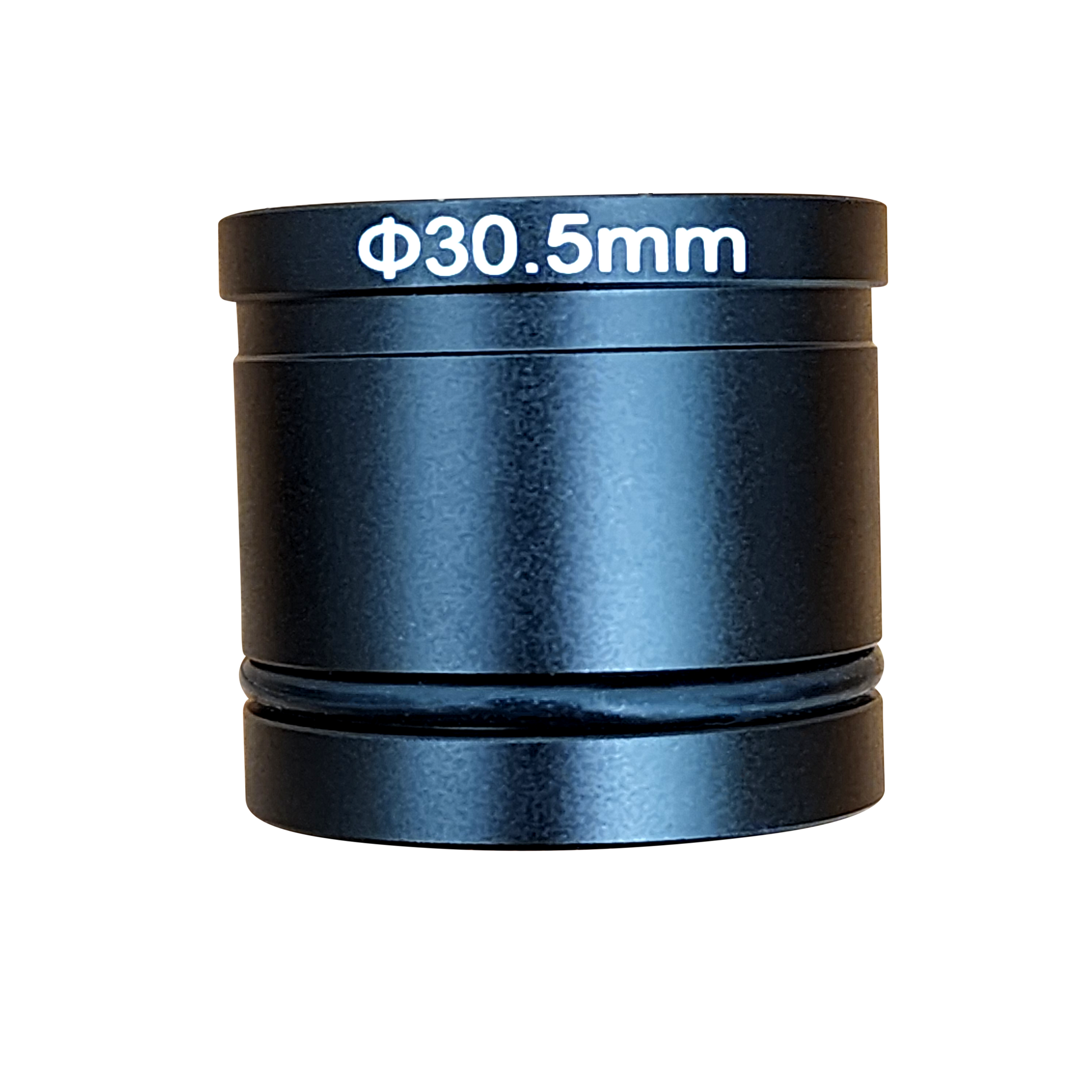

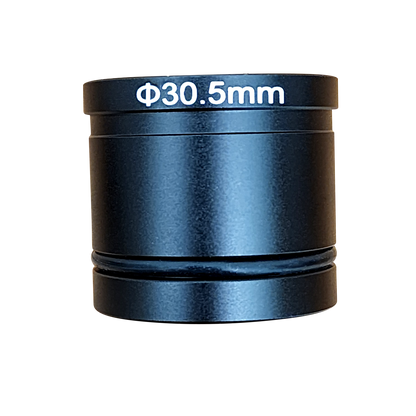

• 1x 23.2mm to 30.5mm Adapter Ring

Complete your workstation with these compatible Labnique essentials:

• 5MP CMOS Color Microscope Camera for high-resolution digital documentation.
• High-Definition HDMI Video Camera for real-time 60FPS monitoring.
• Stage Micrometer / Calibration Slide for accurate software-based measurements.

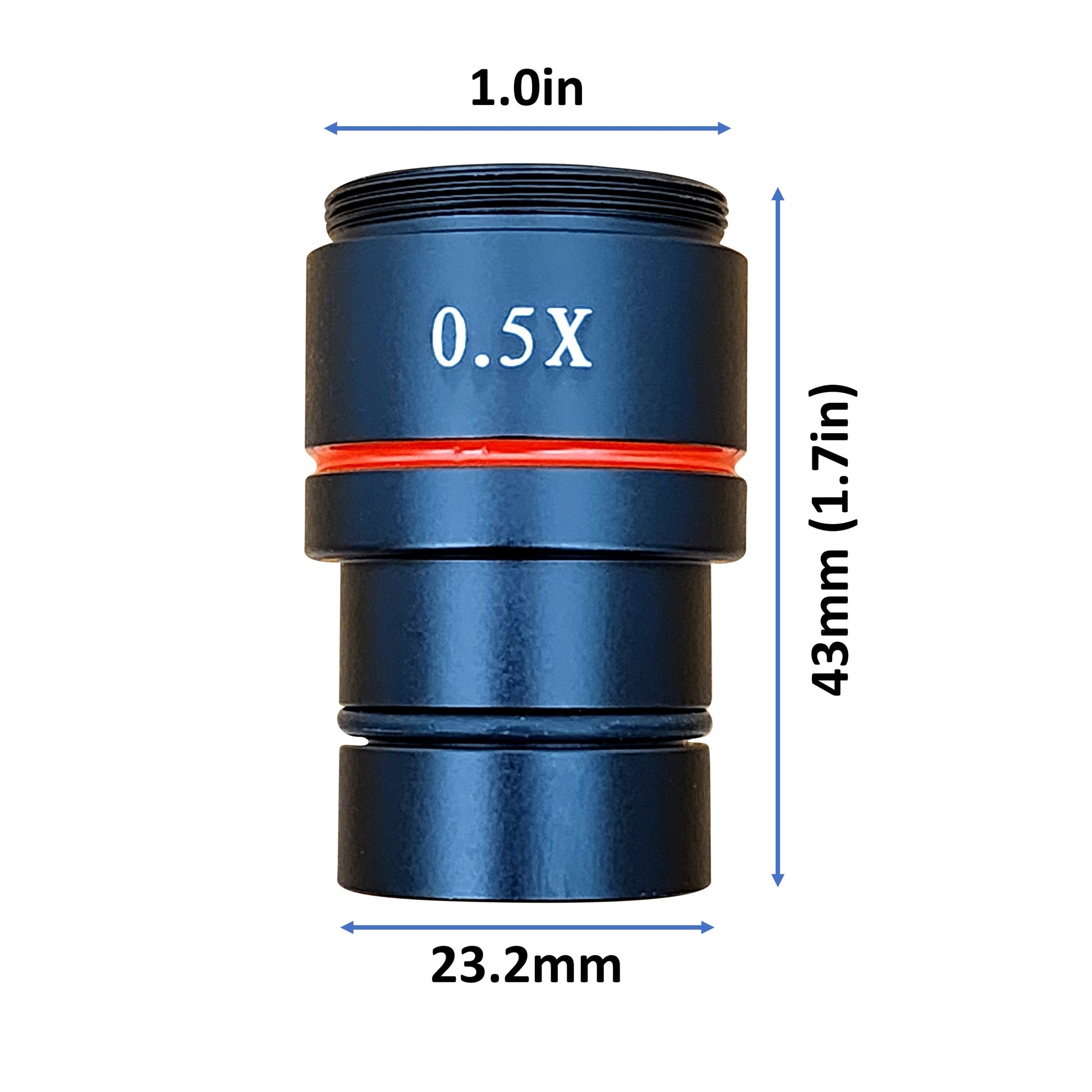

Technical Data:

• Magnification: 0.5X Reduction
• Lens Type: High-definition optical glass
• Camera Mount: Standard C-Mount (1"/25.4mm)
• Mounting Thread: Standard C-Mount (32 TPI)
• Microscope Port Sizes: 23.2mm (Direct Fit), 30.0mm, 30.5mm (via Adapter Sleeves)
• Material: Heavy-duty anodized aluminum
• Optical Alignment: Centered and fixed focus

Applications:

Biological microscopy, industrial inspection, education, and any application requiring the conversion of a standard binocular or trinocular microscope for digital imaging.
