High Definition HDMI + USB Video Camera - 1080P

High Definition HDMI + USB Video Camera - 1080P

  • $499.95

Please contact us for a quote.


XCAM: Microyn XCAM camera (made by Touptek) is a multiple interfaces (HDMI+USB2.0+SD card, so X here means multiple interfaces) CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface.

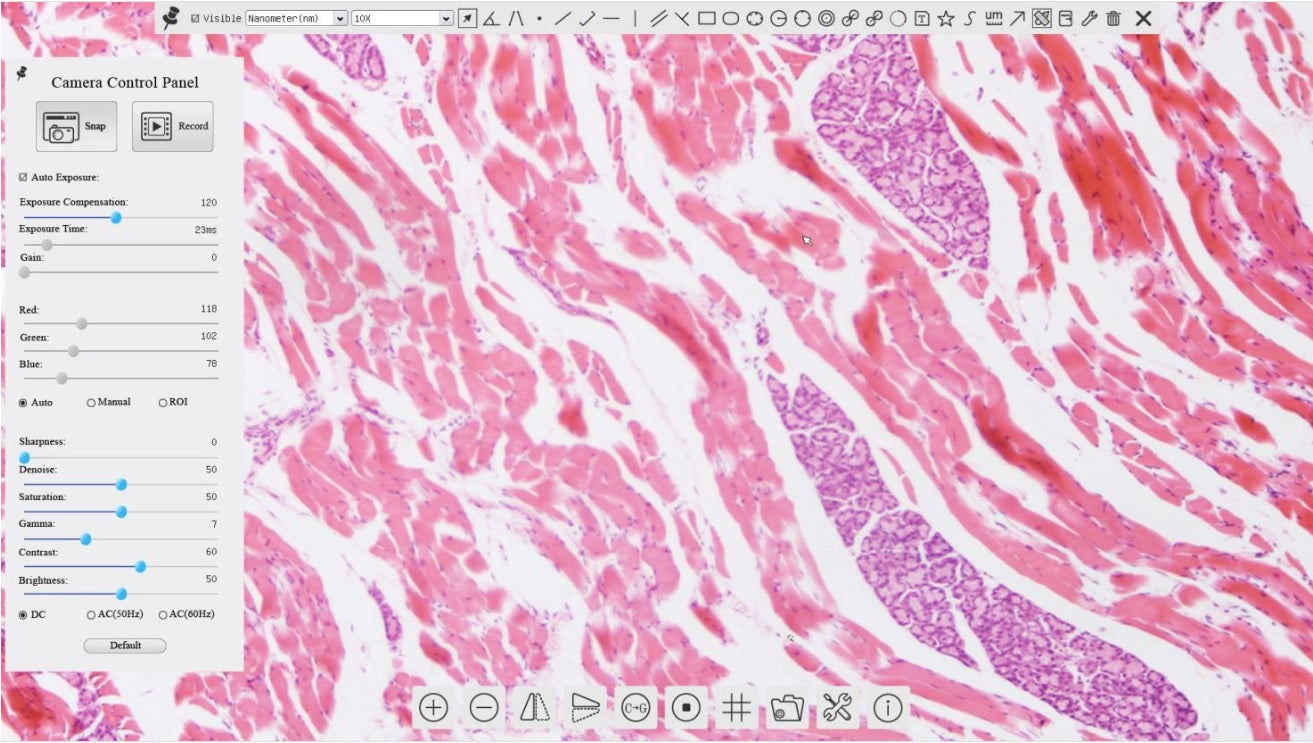

      For HDMI output, a camera control panel and toolbar are overlayed on the HDMI screen, in this case, the USB mouse can be used to set the camera,browse and compare the captured image, play the video etal.

      For USB2.0 output, unplug the mouse and plug in the USB2.0 cable, then the video stream can be transfer to computer with the advanced software ToupView. With ToupView, you can control the camera, process the image as ToupTek's other camera series.

      XCAM camera can be used for microscope, industrial stereo microscope, on-line inspection et al.



Order Code

Sensor

Sensor Size(mm)

Pixel(μm)

FPS/Resolution

Binning

Exposure

XCAM1080PHA
XP1080A

1080P/Sony IMX236(C)

1/2.8"(5.5x3.4)

2.8x2.8

60@1920x1080
30@1920x1080

1x1

0.4ms~999ms



Interface & Button Functions

USB

USB Camera or USB Mouse

HDMI

HDMI Output

DC12V

12V Power in

SD

SD Card Slot

ON/OFF

Power On/Off Switch

LED

Power On Indicator

Other Specification for HDMI Output

UI Operation

With USB Mouse

Image Capture

High Speed in SD Card

Video Record

1080P 30fps in SD Card

Camera Control Panel

Including Exposure, Gain, White Balance, Color
Adjustment, Sharpness and Denoising Control

Toolbar

Including Zoom, Mirror, Comparison, Freeze,
Cross, Browser Function

Other Specification for USB Output

White Balance

Auto White Balance

Color Technique

Ultra-FineTM Color Engine (USB)

Capture/Control API

Standard UVC for Windows/Linux/Mac(USB)

Recording System

Still Picture or Movie (USB)

Software Environment (for USB2.0 Connection)

Operating System

Microsoft® Windows® XP /Vista /7/8/8.1(32 & 64 bit)
OSx(Mac OS X)
Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 4GB or More

USB Port: USB2.0 High-speed Port

Display:   19” or Larger

CD-ROM

Operating Environment

Operating Temperature(in Centidegree)

-10~ 50

Storage Temperature(in Centidegree)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 12V/2A Adaptor

Overall Dimensions

Width x Depth x Height

78 mm (3.07”) x 70 mm (2.76”) x 92mm (3.62”)

Shipping Weight

0.47 kg (1.0lbs)
