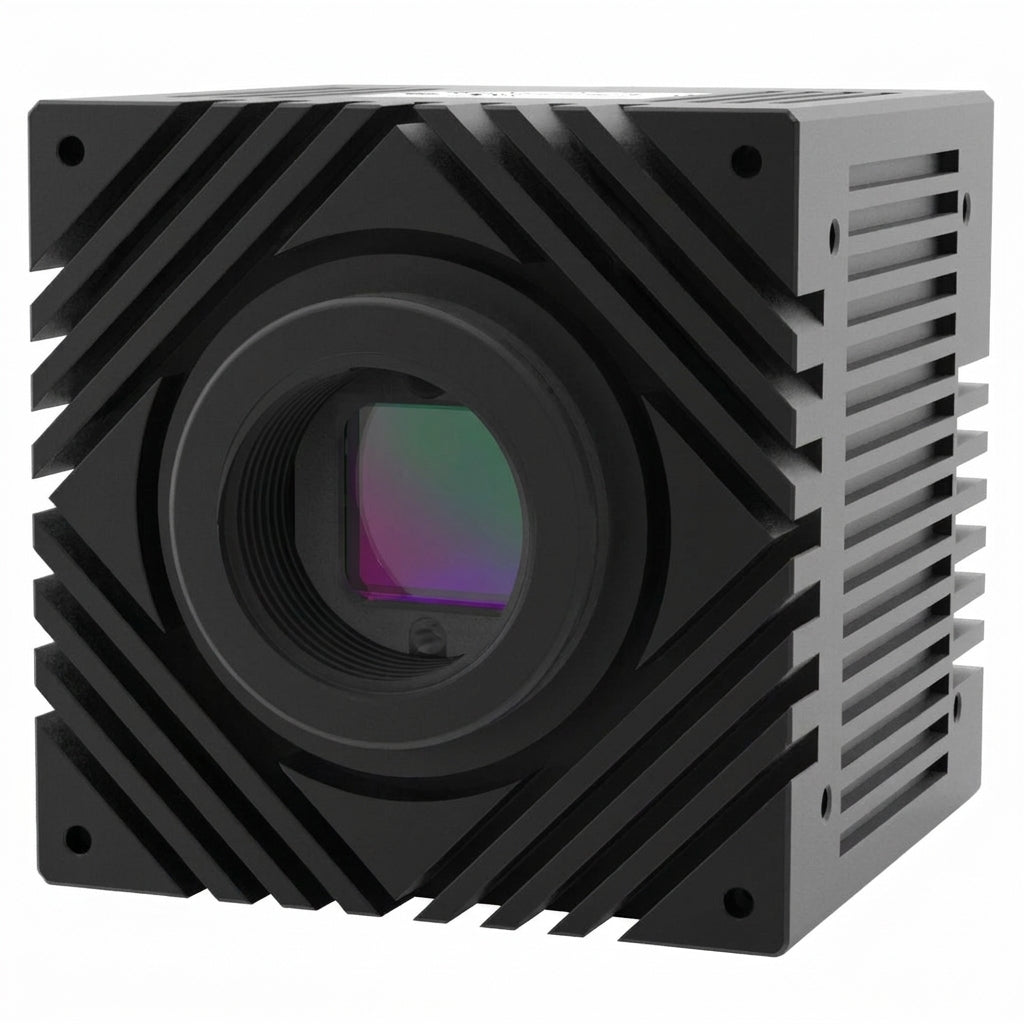

0.5MP 1594fps 10GigE High Speed Camera with Global Shutter for Microfluidics

0.5MP 1594fps 10GigE High Speed Camera with Global Shutter for Microfluidics

MT-XGC51GM

$2,995.00
$2,995.00
Sale Sold out

Low stock: 1 left
  • 1594fps Frame Rate: High frame rate allows for capturing fast-moving objects and processes, ensuring accurate and detailed imaging in high-speed applications.
  • 10 Gigabit Interface: Supports faster image transfer times compared to Gigabit Ethernet, enabling efficient data transmission over long distances up to 100 meters.
  • 1/1.7" IMX426 Global Shutter CMOS Sensor: High-quality sensor with a large pixel size of 9.0μm, providing excellent sensitivity and low noise, ideal for demanding industrial and scientific imaging tasks.
  • C-Mount Lens: The C-Mount lens compatibility offers a wide range of lens options, allowing for flexibility in adjusting the field of view and focus to meet specific application needs.
  • Applications: It is ideal to capture fast moving objects, such as droplets in microfluidic chips.

Parameters

Model Number
MT-XGC51GM
Color
Monochrome
Pixel
0.5MP
Resolution
816*624
Frame Rate(fps)
1594fps
Sensor
1/1.7" IMX426 Global Shutter CMOS
Exposure Time(ms)
0.0008~838.9
Depth
12bit
Lens Mount
C-Mount
GPIO
2 optocouplers for input and 2 optocouplers for output. There is 1 non-isolated bidirectional IO,which supports triggering and synchronization with the flash lamp
Data interface
10 Gigabit
Frame Buffer
256M Bytes
User-defined data area
2K Bytes
Power Requirements
12V
Output format
Bayer8/Bayer12; Mono 8/12bit
Dimensions
64x64x61.7mm (Lens base and rear shell interface are not included)
weight
<550g
Operating temperature
0~50℃
Programming Language
C/C+ +/C #/VB6/VB.NET/Delphi/BCB/Python
Operating System
WIN10/11 32 & 64-bit systems, Linux and ARM Linux drivers and Android platform drivers (customizable)
Driver
DirectShow components Halcon special components Labview dedicated drive OCX components TWAIN components
Other Functions
Support Image size (ROI), camera, exposure time, GAMMA, contrast, brightness, custom LUT, mirror flip, RGB color gain, saturation,
sharpness, color to mono, color temperature correction, anti-color, Color,trigger mode, frame rate control



Included:

  • Camera
  • 10 Gigabit Cable (10 Gigabit interface card is not included)
  • Power and Trigger Cable
  • Manual (download)
  • Software (request)
