Shopping Guide: Selecting the Optimal Heating Mantle for Your Lab

Shopping Guide: Selecting the Optimal Heating Mantle for Your Lab

Precision heating is the heartbeat of organic synthesis. While hot plates are versatile for flat-bottomed beakers, a Heating Mantle is the specialized gold standard for uniform heat distribution around Round-Bottom Flasks (RBFs), also known as a boiling flask.

Since 2012, Labnique has provided curated heating solutions designed to balance high-temperature performance with the safety protocols required for volatile solvent handling. This guide helps you choose the perfect "nest" for your glassware.

Why Do You Need a Heating Mantle?

Before choosing a model, it is important to understand why a specialized mantle is the superior choice for lab work compared to a standard hot plate:

  • Safer than Hotplates: Unlike hot plates with exposed surfaces, our mantles have heating elements safely embedded within glass fiber insulation. This makes them the safest choice for flammable solvents (like Ethanol or Hexane) that could ignite if spilled on an open-element heater.
  • Uniform Heat Distribution: Our mantles "cup" the flask, ensuring the liquid is heated from all sides simultaneously. This prevents "hot spots" and "bumping" (sudden, violent boiling) that can ruin sensitive experiments.
  • Integrated Agitation: All Labnique models feature built-in magnetic stirrers (up to 1600rpm), saving valuable bench space and removing the need for bulky overhead stirrers.

Who Really Needs a Heating Mantle?

If your lab performs any of the following, a heating mantle is a core requirement for safety and results:

  • Organic Chemistry & Synthesis: For procedures like Refluxing, where a solution must boil for hours. The mantle prevents "hot spots" that could degrade sensitive molecules.
  • Essential Oil & Botanical Extraction: When performing Steam Distillation, the "envelope" of heat prevents plant material from scorching.
  • Environmental & Food Testing: Labs performing Soxhlet Extractions to test for fats or pollutants rely on the steady, unattended safety of a mantle.
  • Hemp & Cannabinoid Processing: Essential for large-scale Decarboxylation, where holding a precise temperature (110°C–120°C) is required to activate compounds without ruining the batch.

Featured Solutions: The Labnique Heating Collection

1. Digital Heating Mantles (The Precision Assistant)

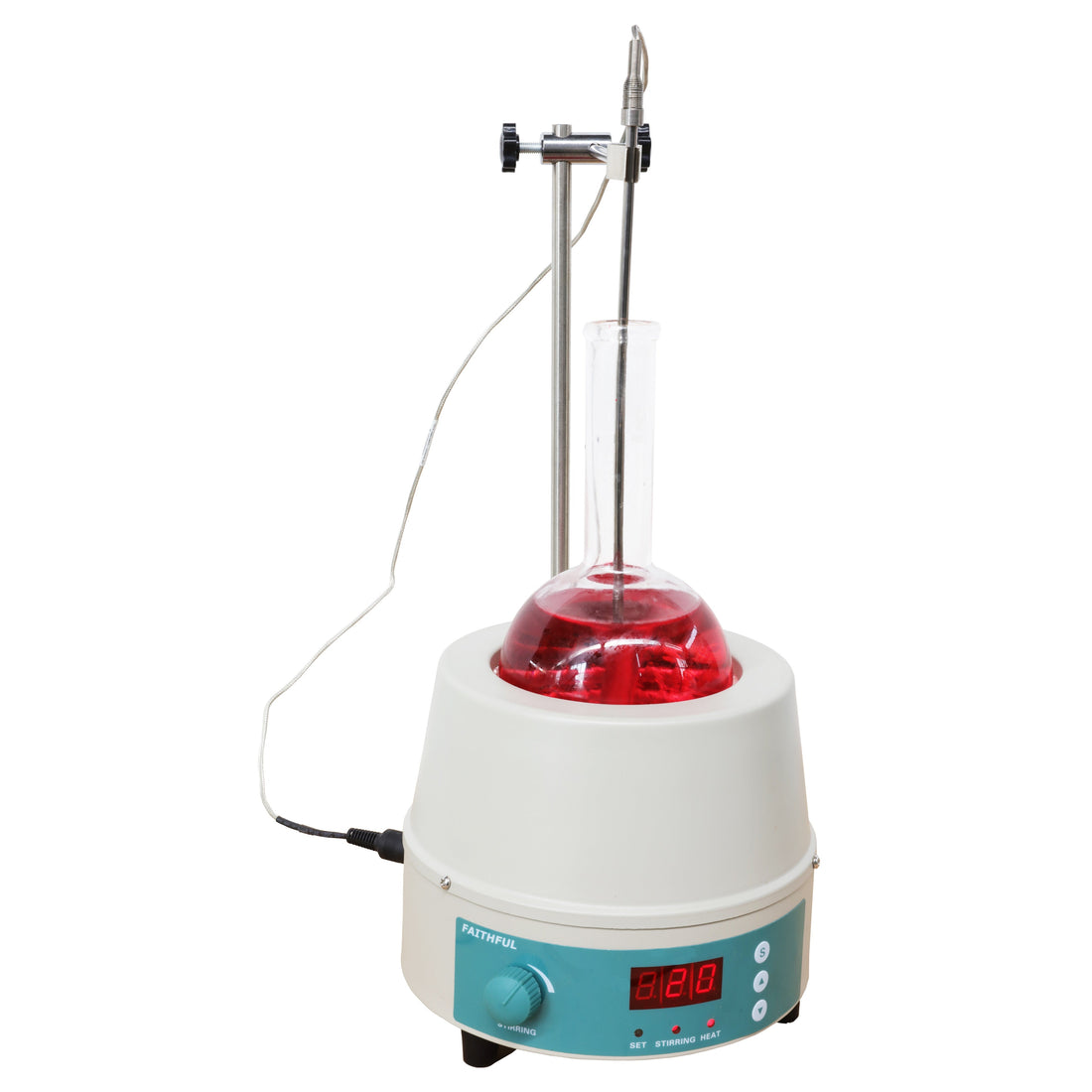

Round bottom flask in a digital heating mantle with external temperature sensor attached.

Best For: Sensitive R&D, fractional distillation, and decarboxylation where preventing temperature overshoot is critical to the success of the batch.

  • Advanced PID Control: Features an intelligent controller that maintains a steady temperature (up to 250°C) with professional-grade ±1°C accuracy.
  • Real-Time Liquid Monitoring: Unlike basic heaters, these units include a PT100 Temperature Sensor that sits directly in your solution, providing a digital readout of the actual liquid temperature rather than just the mantle surface.
  • Complete All-in-One Kit: Each digital unit comes ready for immediate professional use.

    • What’s Included: The heating mantle, power cord, 25mm magnetic stir bar, supporting rod, and the PT-100 temperature probe.

Shop the Digital Series:

2. Analog Heating Mantles (The High-Heat Workhorse)

1000ml Analog Heating Mantle kit including the white and blue stirring mantle unit, a standard 110V power cord, and a white PTFE-coated magnetic stir bar. The interior shows the fiberglass jacket heating element.

Best For: High-boiling point distillations (oils, waxes), rapid solvent boiling, and rugged environments where manual "dial-in" power is preferred over delicate electronics.

  • Unmatched Thermal Reach: Capable of reaching surface temperatures up to 420°C. This significantly exceeds the limits of digital PID controllers and even outpaces high-performance Laboratory Hot Plates, which typically max out at 380°C.
  • Rugged Reliability: Built with fewer electronic components to ensure long-term durability in high-demand settings where "budget efficiency" meets "heavy-duty performance."
  • What’s Included: Includes the heating mantle, power cord, and a 25mm magnetic stir bar.

Shop the Analog Series:

Comparison: Which Setup Do You Need?

At-A-Glance Comparison

Feature

Analog (98-II-B Series)

Digital (98-III-B Series)

Max Surface Temp

420°C

250°C

Temperature Control

Stepless Manual Dial

Digital PID Control

Accuracy

Manual / Visual

±1°C

Included Accessories

25mm Stir Bar

Stir Bar, Rod, & PT-100 Probe



Final Verdict: Which Should You Choose?

If your priority is...

Choose Analog (98-II-B)

Choose Digital (98-III-B)

Max Temperature

High Heat (420°C)

Precision Cap (250°C)

Control Logic

Manual "Set by Dial"

Automated "Set & Forget"

Setup Type

Modular / Barebones

All-in-One Ready Kit

Budget

Most Cost-Effective

Premium Feature-Set

The Rule of Thumb:

Choose Analog IF: You are performing high-heat distillations that require temperatures above 250°C, or if you prefer a rugged workhorse that doesn't rely on digital sensors.

Choose Digital IF: You need exact precision for sensitive R&D or decarboxylation and want a complete kit that monitors liquid temperature in real-time.

Essential Accessories

Final Notes on Heating Mantle Systems

Whether you are performing delicate organic synthesis, essential oil extraction, or high-heat distillations, the right heating setup ensures both the safety of your lab and the purity of your results. By moving from a standard hot plate to a specializedLabnique Heating Mantle, you eliminate the risk of "hot spots" and provide the uniform thermal environment necessary for complex chemical transformations.

At Labnique, we stand by our equipment with a 1-year warranty and expert technical support to ensure your research reaches its full potential.

Ready to upgrade your thermal processing? Explore the Full Heating Mantle Collection
