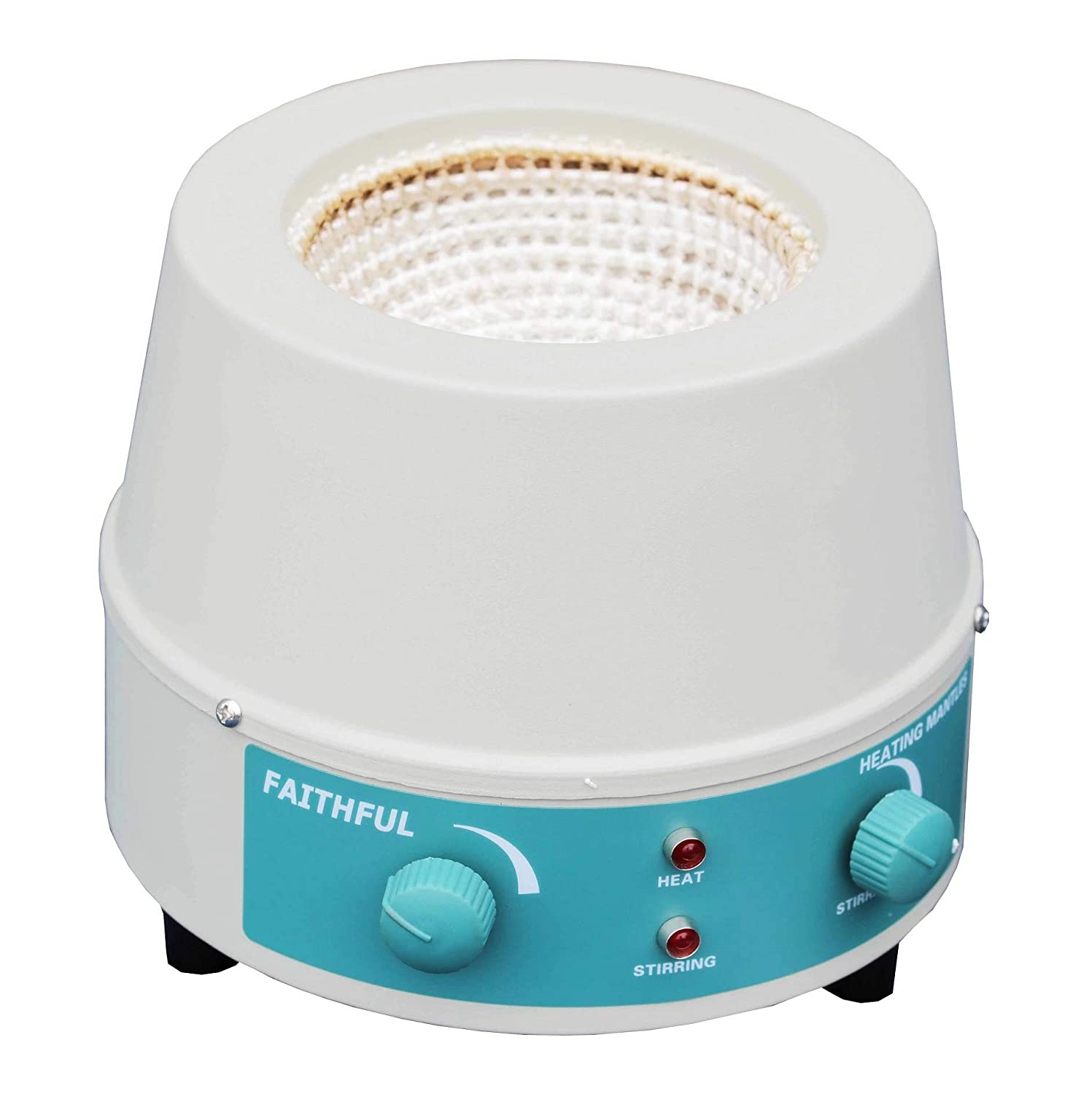

Heating Mantle with Magnetic Stirring, 2000ml, 0-1600rpm, 110V, 450W

The Analog Heating Mantle is a reliable, dual-action laboratory tool designed for efficient heating and magnetic stirring of larger volumes. Featuring a durable fiberglass jacket for even heat distribution and stepless analog dials for precise manual adjustment, this model is built for continuous operation in demanding environments. It is ideal for routine distillation, evaporation, and chemical mixing tasks involving up to 2000ml of solution.

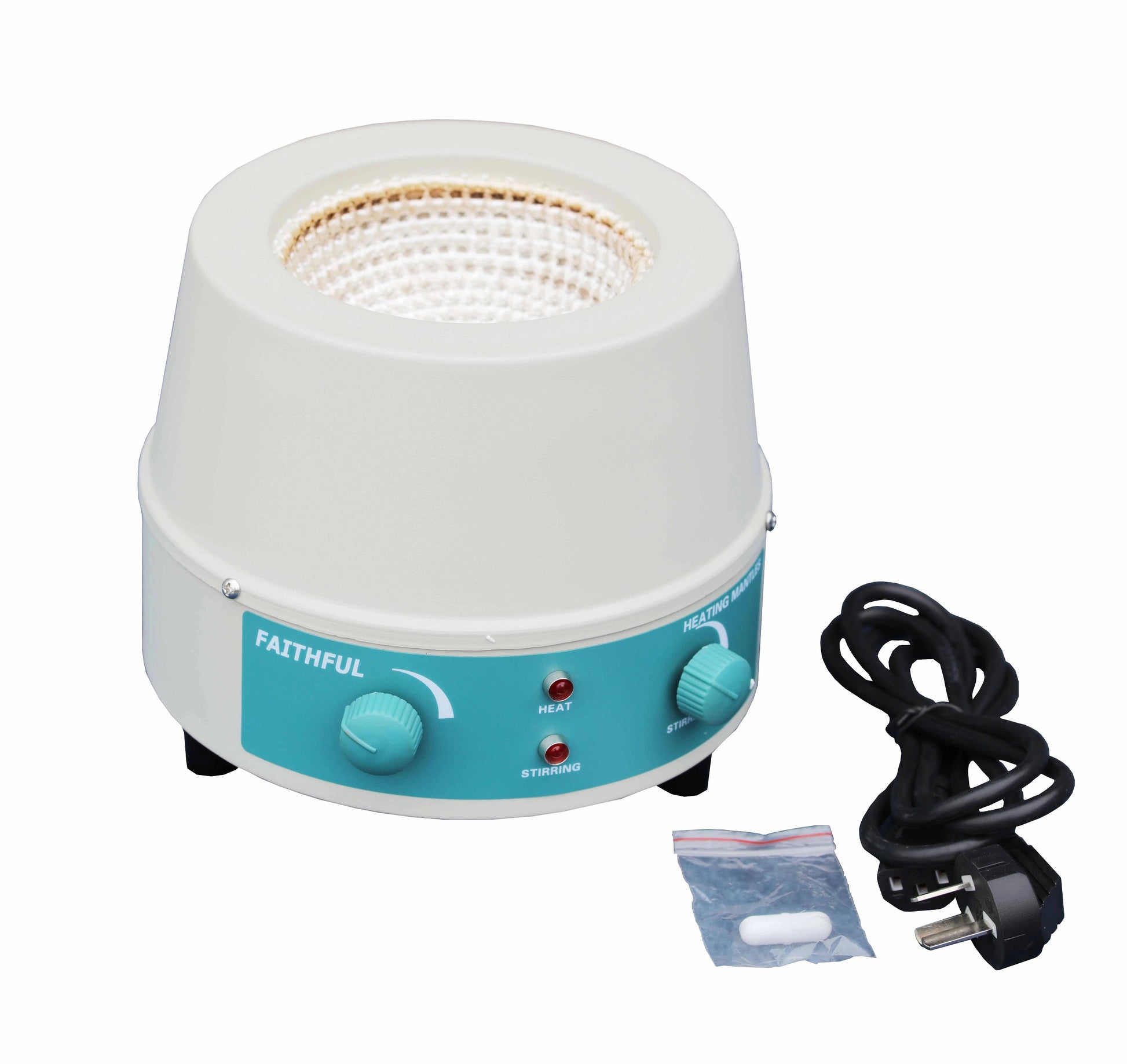

What’s Included:

• Analog Heating Mantle (98-II-B)
• 25mm Magnetic Stirring Bar for consistent vortex generation
• Power Cord

Complete Your Workstation

Enhance your setup with these compatible Labnique essentials:

• Digital Scientific Thermometer (up to 300°C)
• Magnetic Stirring Bar Retriever to retrieve stir bar from containers up to 10L.
• 2000ml Boiling Flask (pack of 2) for optimal heat transfer and fit.

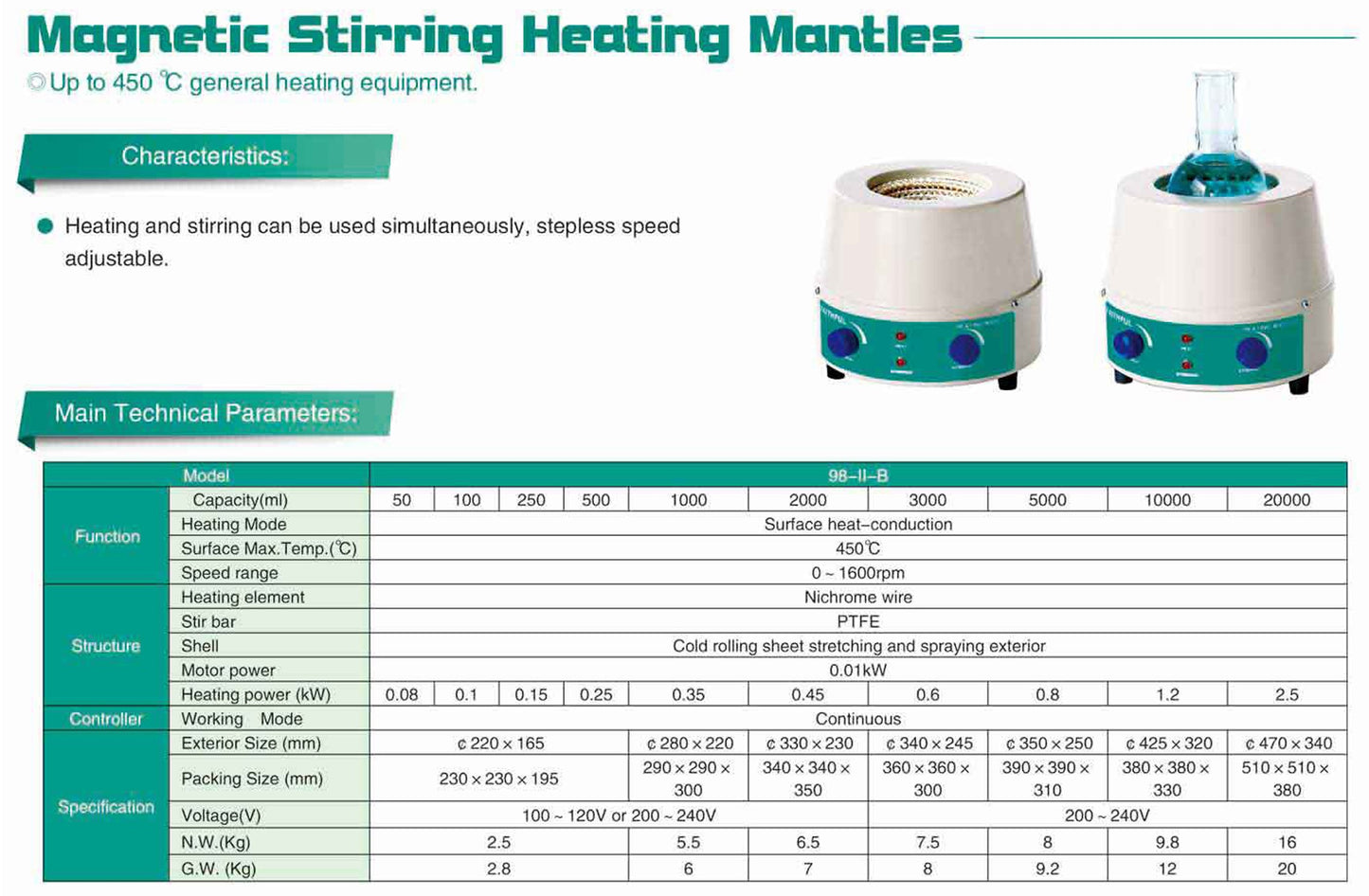

Technical Data

• Capacity: 2000ml
• Heating Mode: Surface heat-conduction
• Maximum Surface Temperature: 420°C
• Temperature Control: Analog stepless dial
• Speed Range: 0–1600rpm (Stepless analog adjustment)
• Stir Bar Size: 25mm
• Heating Element: Nichrome wire
• Stir Bar Material: PTFE
• Shell Material: Cold-rolled sheet stretching and spraying exterior
• Motor Output Power: 0.01kW (10W)
• Heating Power: 0.45kW (450W)
• Operation Mode: Continuous (Simultaneous heating and stirring supported)
• Exterior Size (mm): 330 (diameter) x 230
• Packing Size (mm): 350 x 350 x 280
• Voltage: 110V (100–120V)
• Net Weight (N.W.): 7.5kg

Applications:

Scientific laboratory, industrial and mining, food processing, biochemistry, agriculture, petrochemical engineering, and pharmaceutical industry.
