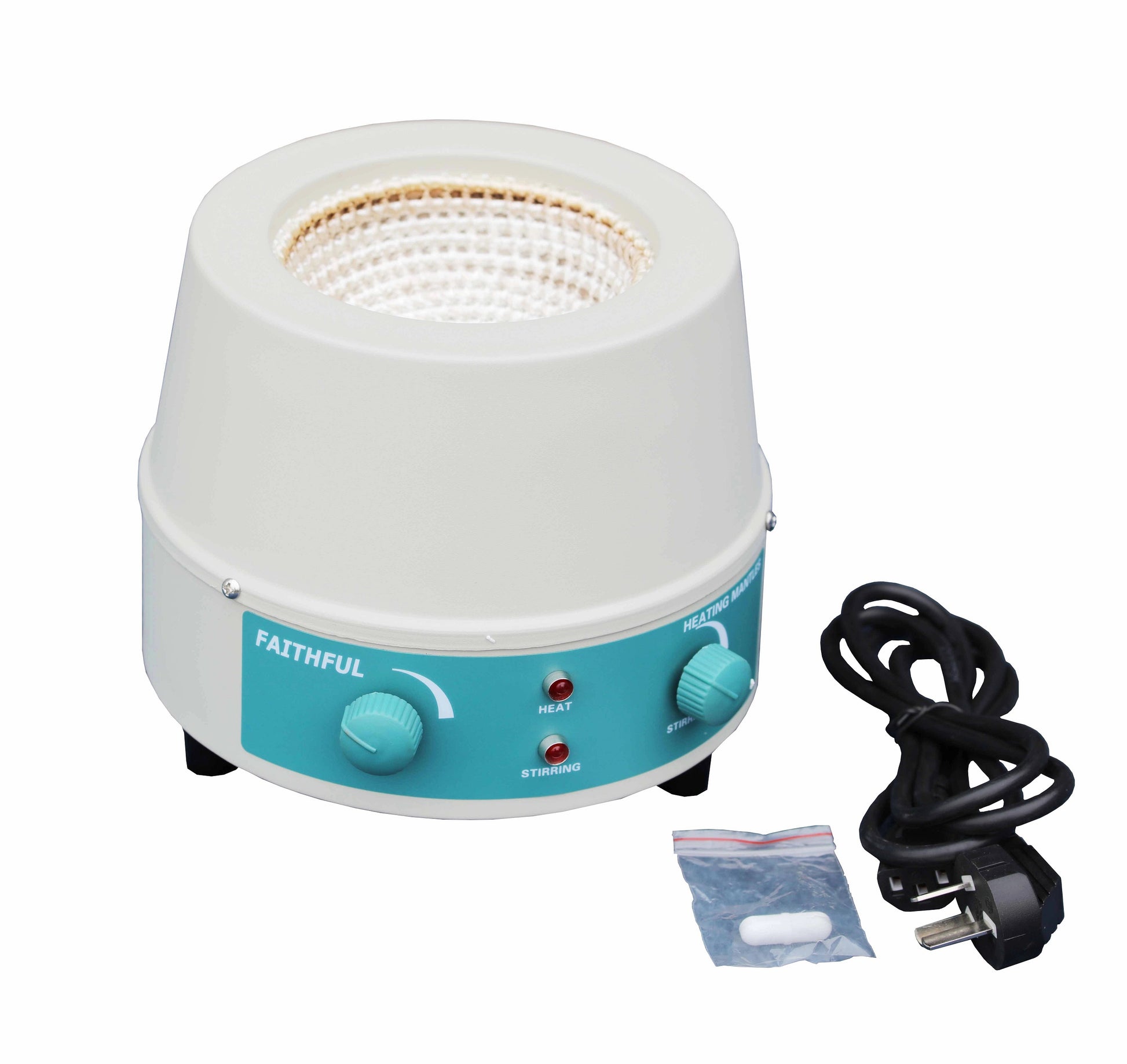

  • 500ml Analog Heating Mantle kit including the white and blue stirring mantle unit, a standard 110V power cord, and a white PTFE-coated magnetic stir bar. The interior shows the fiberglass jacket heating element
  • Rear view of the analog heating mantle showing the 110V power inlet and CE certification label. The unit features a white cold-rolled steel exterior that houses the internal alkali-free fiberglass heating jacket and nichrome wire element.
  • Comparison guide for Suitable Boiling Flask sizes across three digital heating mantles: 500ml (105mm OD), 1000ml (131mm OD), and 2000ml (166mm OD), showing the interior nichrome wire heating elements.
  • Technical specification table for Labnique 98-III-B series analog Heating Mantles. Compares models from 50ml to 20,000ml, listing heating power (80W to 2500W), temperature range (RT+20-250°C), and physical dimensions. Features common specs including PID control, 1600rpm speed, and nichrome heating elements.
1 5

labnique

Heating Mantle with Magnetic Stirring, 500ml, 0-1600rpm, 110V, 250W

Heating Mantle with Magnetic Stirring, 500ml, 0-1600rpm, 110V, 250W

98-II-B-500

$119.95
$119.95
Sale Sold out

The Analog Heating Mantle 500ml is a reliable, dual-action laboratory tool designed for efficient heating and magnetic stirring. Featuring a durable fiberglass jacket for even heat distribution and stepless analog dials for precise manual adjustment, this model is built for continuous operation in demanding environments. It is ideal for routine distillation, evaporation, and chemical mixing tasks for smaller batches up to 500ml.

What’s Included:

  • Analog Heating Mantle (98-II-B)
  • 25mm Magnetic Stirring Bar for consistent vortex generation
  • Power Cord

Complete Your Workstation

Enhance your setup with these compatible Labnique essentials:

Technical Data

  • Capacity: 500ml
  • Heating Mode: Surface heat-conduction
  • Maximum Surface Temperature: 420°C
  • Temperature Control: Analog stepless dial
  • Speed Range: 0–1600rpm (Stepless analog adjustment)
  • Stir Bar Size: 25mm
  • Heating Element: Nichrome wire
  • Stir Bar Material: PTFE
  • Shell Material: Cold-rolled sheet stretching and spraying exterior
  • Motor Output Power: 0.01kW (10W)
  • Heating Power: 0.25kW (250W)
  • Operation Mode: Continuous (Simultaneous heating and stirring supported)
  • Exterior Size (mm): 230 (diameter) x 190
  • Packing Size (mm): 240 x 240 x 240
  • Voltage: 110V (100–120V)
  • Net Weight (N.W.): 3.5kg

Applications:

Scientific laboratory, industrial and mining, food processing, biochemistry, agriculture, petrochemical engineering, and pharmaceutical industry.
