Microscope Stage Calibration Slide, Eyepiece Micrometer, Microscope Eyepiece Graticules, Ocular Micrometer, Cross Line Reticle (Set of 2)

The Labnique Calibration Set is a comprehensive dual-standard solution for achieving absolute measurement accuracy in microscopy. This professional kit includes a high-precision stage micrometer for objective calibration and a matching ocular reticle for direct eyepiece measurement. Engineered from premium optical glass with etched scales, this set allows researchers and technicians to synchronize their optical system, ensuring that digital imaging and manual observations remain perfectly calibrated across all magnification levels.

Complete your workstation with these compatible Labnique essentials:

• Digital Microscope Camera for high-resolution imaging and software-based measurement calibration.

What’s in the Box?

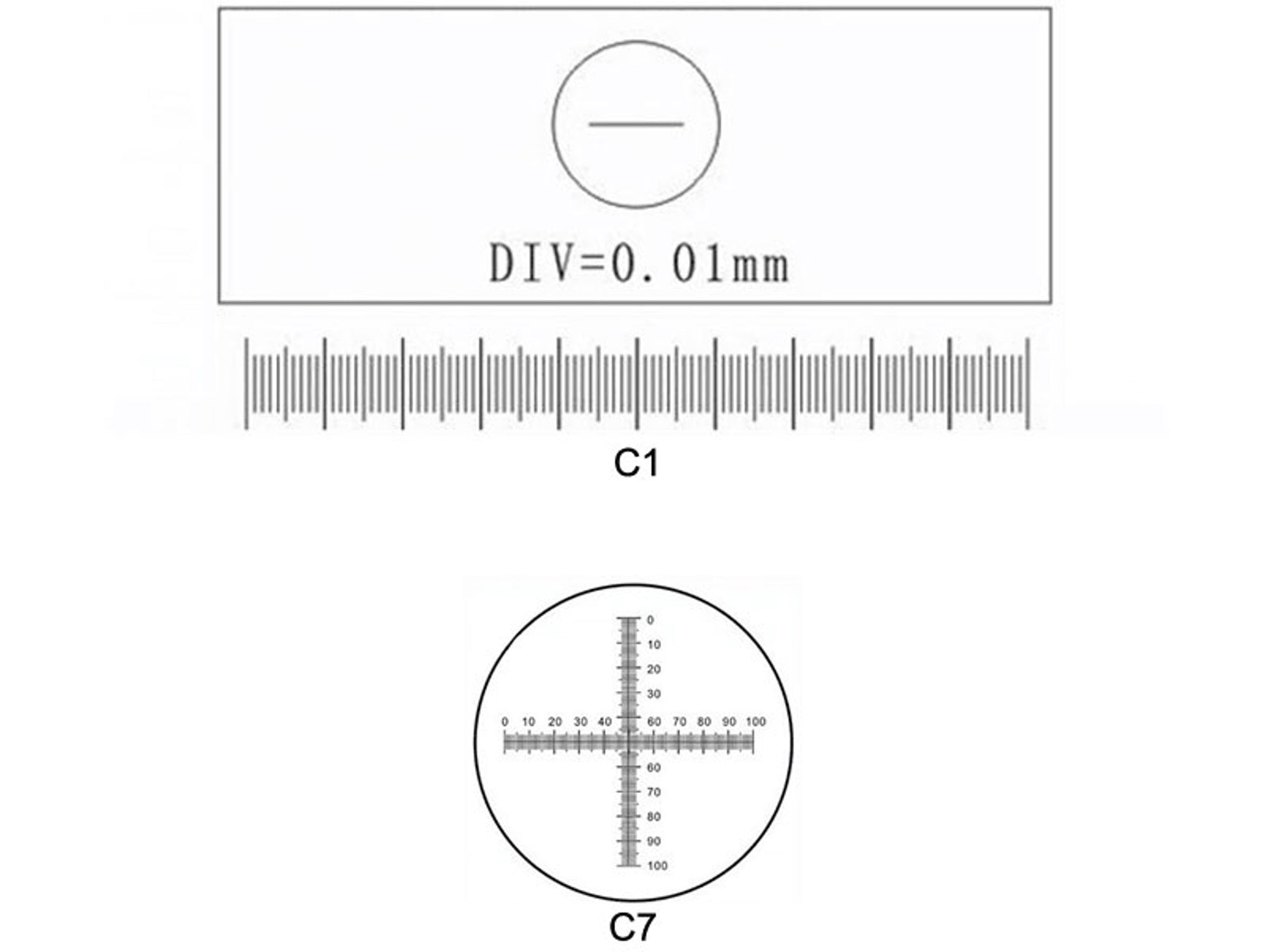

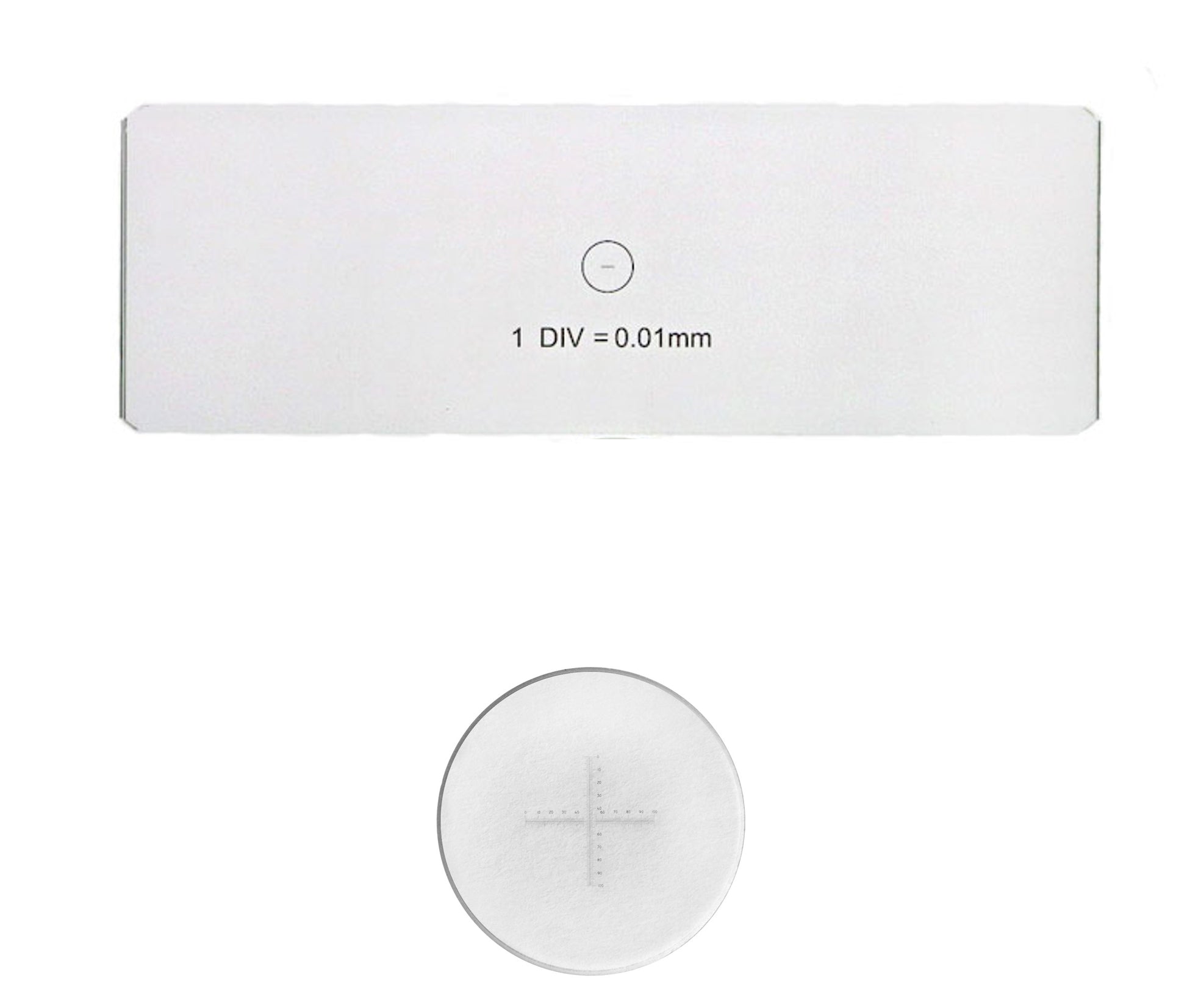

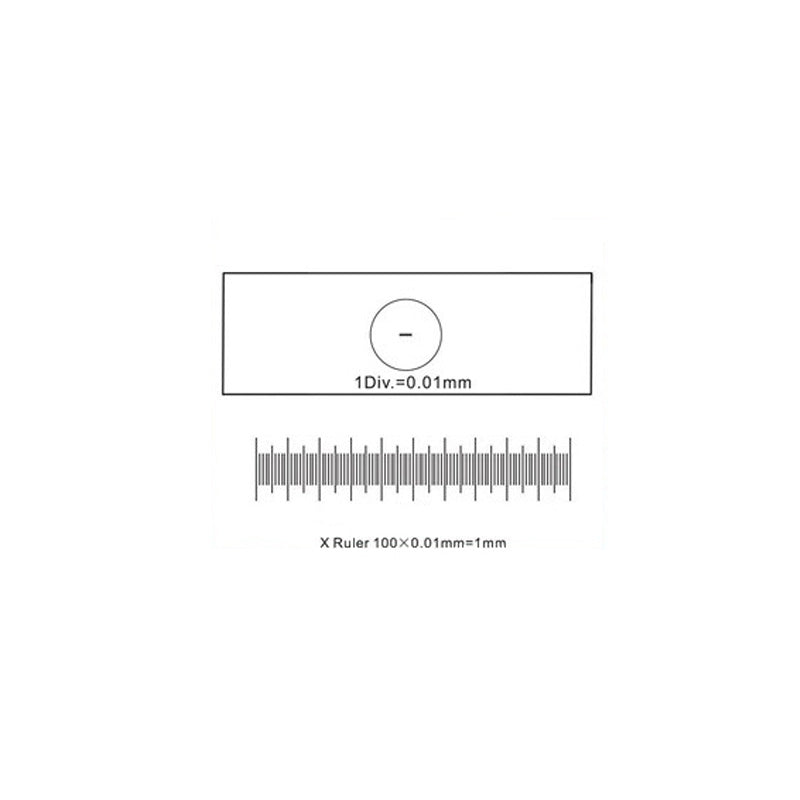

• 1 x Stage Micrometer Calibration Slide: 75 x 25mm optical glass slide with a 1mm scale divided into 100 parts ( 0.01mm resolution).

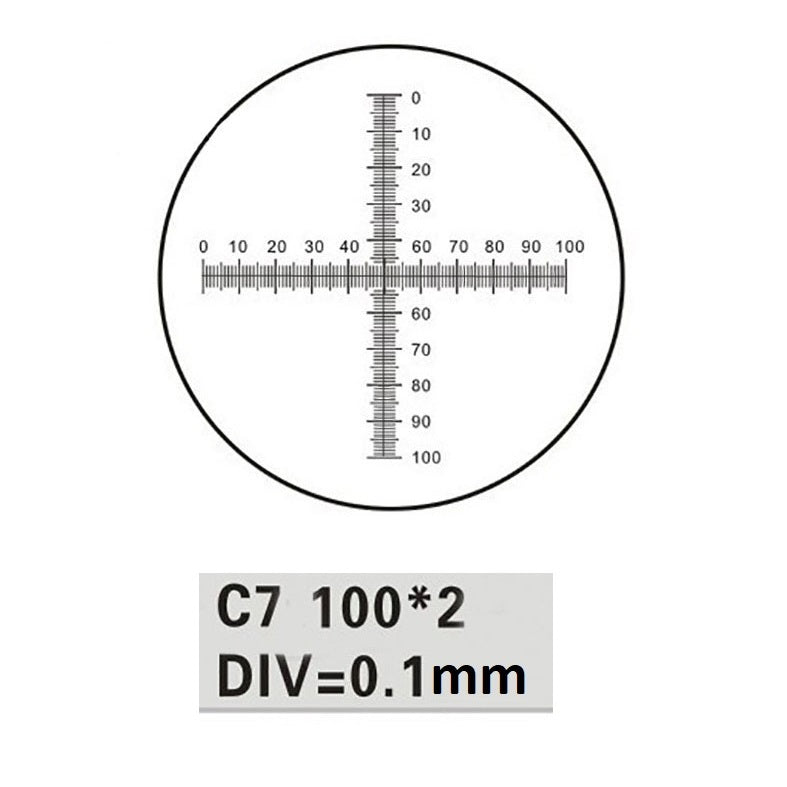

• 1 x Eyepiece Micrometer Reticle (Ocular Graticule): ⌀ 19( standard size) glass disc featuring a 10 mm scale divided into 100 parts (0.1mm  resolution).

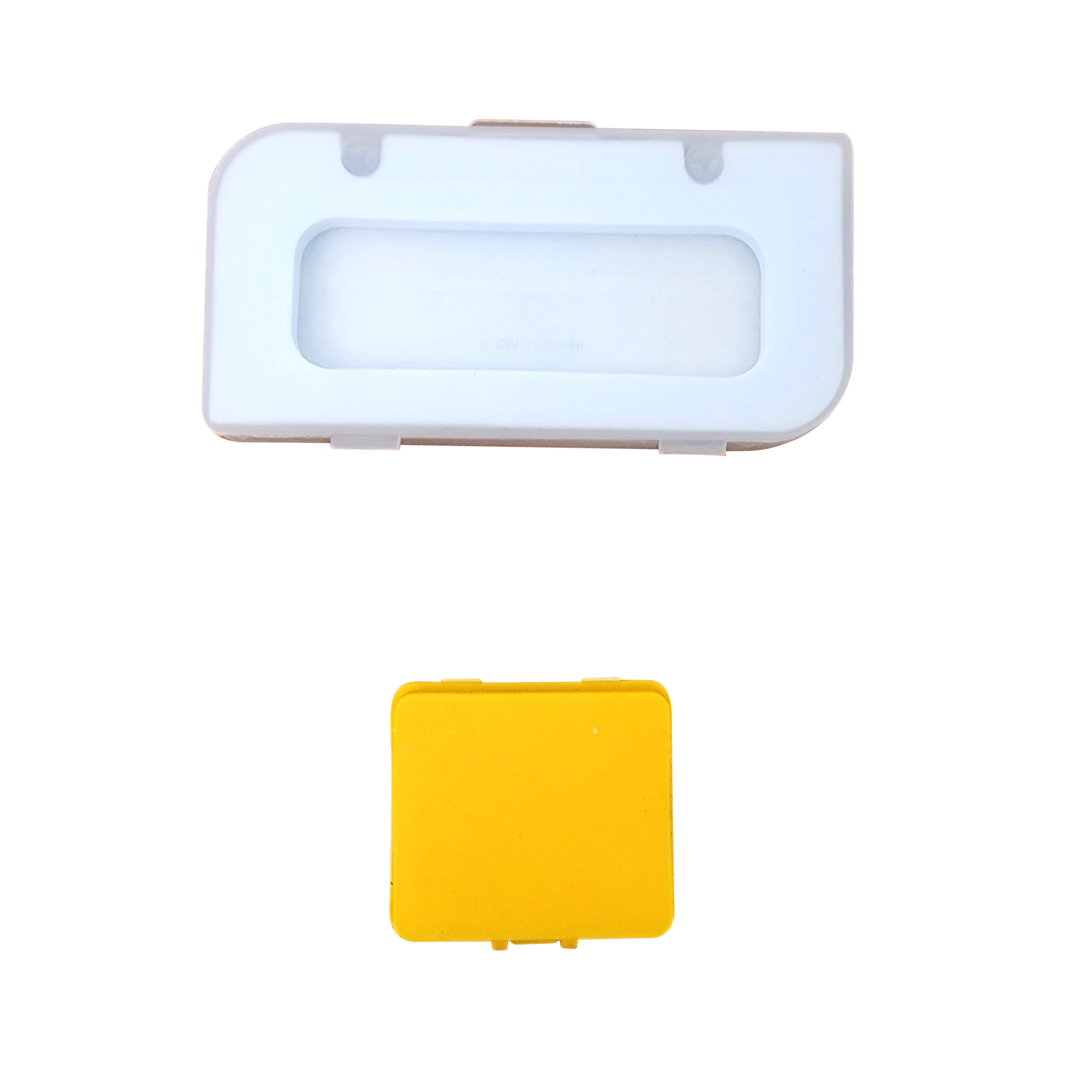

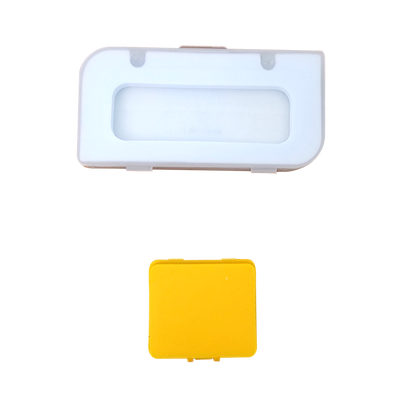

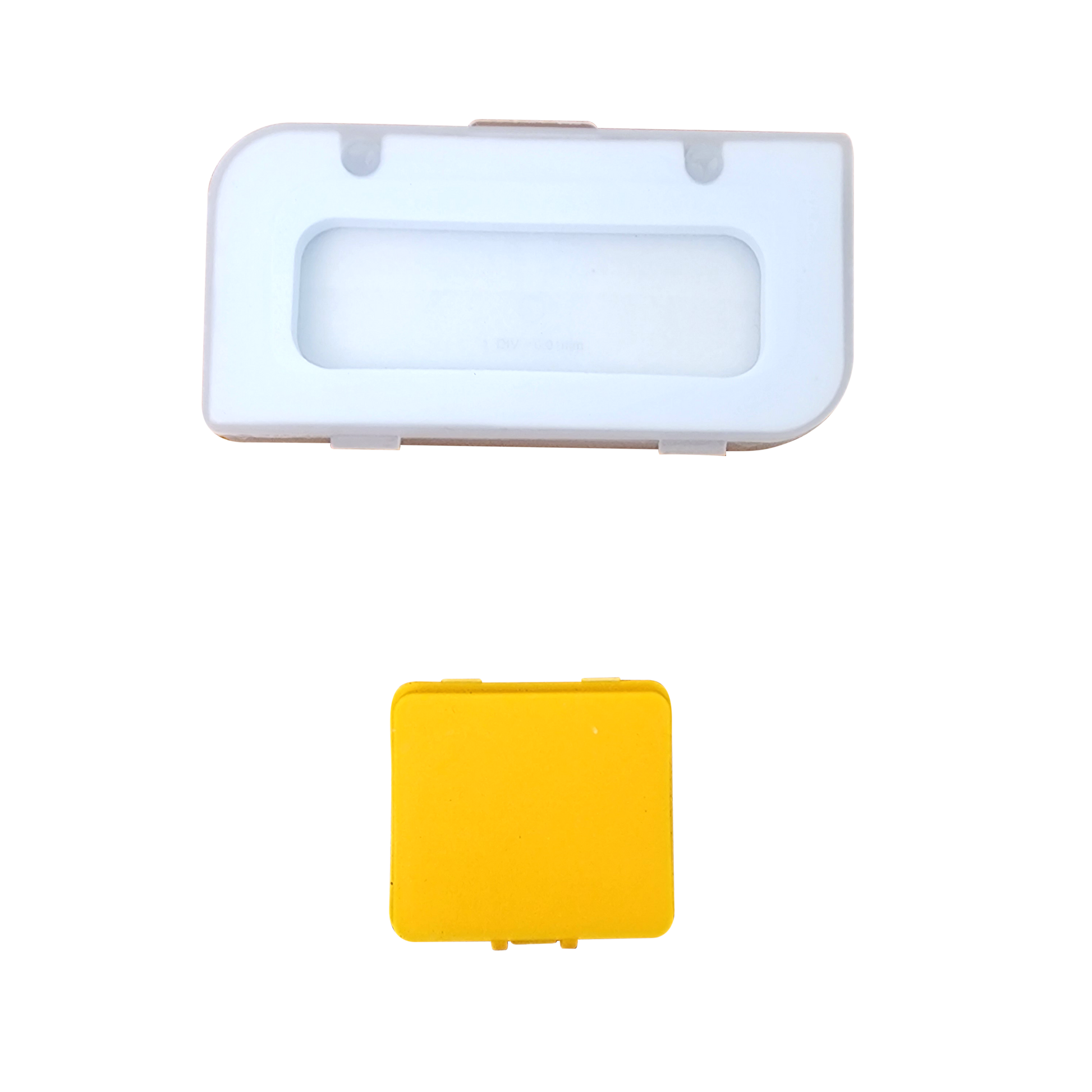

• 2 x Protective Storage Cases: Individual padded containers to ensure long-term precision and prevent surface abrasions.

Technical Data:

• Slide Type: Stage Micrometer (Standard 75 x 25 x 1.1mm)
• Reticle Type: Eyepiece Micrometer / Ocular Reticle
• Reticle Diameter:  ⌀ 19 (Please verify eyepiece compatibility before installation)
• Material: High-transparency optical glass
• Stage Scale Resolution: 0.01mm (1mm total length)
• Eyepiece Scale Resolution: 0.1mm ( 10mm total length)
• Etching Method: High-contrast chrome-on-glass vacuum deposition
• Calibration: Production is periodically calibrated to ensure accuracy (no individual certificate included).

Applications:

Scientific laboratory, industrial and mining, food processing, biochemistry, agriculture, petrochemical engineering and pharmaceutical industry.
