Digital Orbital Shaker with Platform, Adjustable Speed at 100-500rpm, 7.5kg Capacity

Digital Orbital Shaker with Platform, Adjustable Speed at 100-500rpm, 7.5kg Capacity

MT-DSR-10

$799.95
$799.95
Sale Sold out

The Labnique MT-DSR-10 Digital Orbital Shaker is a versatile and robust platform shaker, ideal for demanding laboratory mixing. With a substantial 7.5kg capacity, this variable speed orbital shaker efficiently handles large volumes and multiple samples. It features both circling and reciprocating motion, and adjustable speeds from 100-500rpm, making it suitable for bacterial cultures, solubility studies, extraction processes, and more. A quiet, long-lasting Brushless DC Motor (BLDCM) ensures reliable performance, while the digital LCD interface provides precise control and monitoring.

Key Features:

  • High Capacity: 7.5kg (16.5lbs) maximum load, accommodating numerous flasks and bottles (5.9kg/13lbs net payload).
  • Variable Speed: Adjustable speed range of 100-500rpm.
  • Dual Motion: Circling and reciprocating motion.
  • Universal Compatibility: Multiple fixing clips for various vessel shapes and sizes.
  • Quiet Operation: Brushless DC Motor (BLDCM).
  • Precise Control: LCD with backlight display.
  • Safety Features: Digital time/speed settings and built-in safety protection.

Applications

  • Bacterial cultures (flask shaker).
  • Solubility studies (lab mixer shaker).
  • Extraction processes (bottle shaker).
  • General lab mixing.

Benefits:

  • Efficiently mixes large volumes.
  • Provides precise control for repeatable experiments.
  • Offers versatile mixing options.
  • Ensures quiet and reliable operations

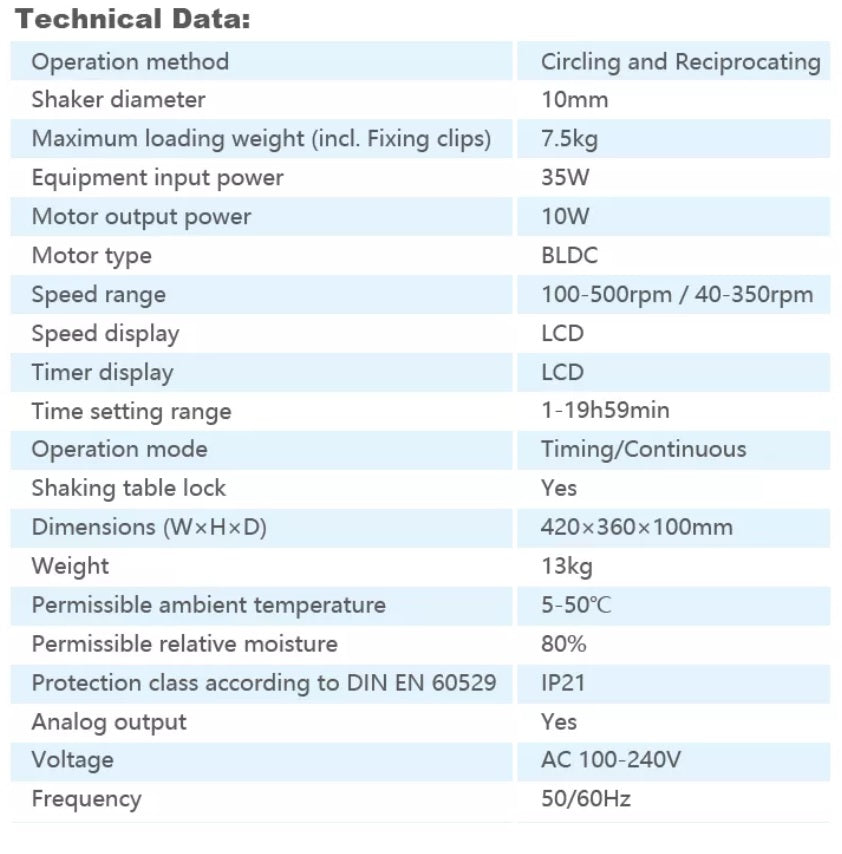

Technical Data:

  • Operation method: Circling and Reciprocating
  • Shaker diameter: 10mm
  • Maximum loading weight (incl. Fixing clips): 7.5kg
  • Equipment input power: 35W
  • Motor output power: 10W
  • Motor type: BLDC
  • Speed range: 100-500rpm
  • Speed display: LCD
  • Timer display: LCD
  • Time setting range: 1-19h59min
  • Operation mode: Timing / Continuous
  • Shaking table lock: Yes
  • Dimensions (WxHxD): 420 × 360 × 100mm
  • Weight: 13kg
  • Permissible ambient temperature: 5-50 °C
  • Permissible relative moisture: 80%
  • Protection class according to DIN EN 60529: IP21
  • Analog output: Yes
  • Voltage: AC 100-240V Frequency 50/60Hz
