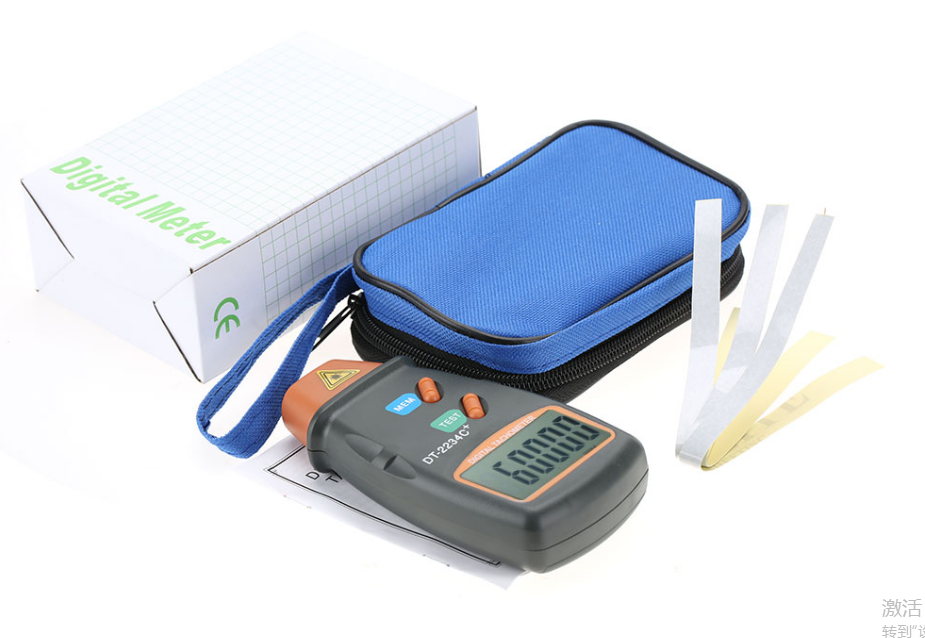

Digital Laser Non-Contact Tachometer RPM Range Photoelectric Speed Meter Tester 2.5-99999RPM
Digital Laser Non-Contact Tachometer RPM Range Photoelectric Speed Meter Tester 2.5-99999RPM
SKU:MT-DT2234C
Regular price
$18.95
Regular price
Sale price
$18.95
Unit price
/
per
Couldn't load pickup availability
Features:
1. Wide measuring range & high resolution.
2. Digital display gives instant accurate RPM.
3. The housing has been carefully shaped to fit comfortably in either hand.
4. The last value, Max value and Min . value will be automatically stored in memory and can be displayed by turn anytime.
Specification
Display
|
Large LCD characters display
|
Use for
|
Measure the rotating speed of lathe motors and machine
|
Range
|
2.5 to 99,999 RPM
|
Resolution
|
0.1 RPM(2.5 to 999.9 RPM), 1 RPM (over 1,000 RPM)
|
Accuracy
|
±(0.05% + 1 Digit)
|
Sampling Time
|
0.8 Seconds (over 60 RPM)
|
Test Range Select
|
Automatic
|
Memory
|
Last Value, Max. Value, Min. Value
|
Detecting Distance
|
50 to 200MM= 2-10 Inch (LED), 50 to 500MM=2-20 Inch (Laser)
|
Time Base
|
Quartz Crystal
|
Output
|
less than 1mw
|
Battery
|
6F22 9V (Not included)
|
Product Size
|
130 x 67 x 27 mm
|
Scan Diameter
|
17mm
|
Package Size
|
146 x 95 x 45mm
|
