If you have a high-quality microscope, you already have the optics for discovery. But in quantitative microscopy, seeing the image is only the first step—you must also be able to measure, document, and standardize your findings.
At Labnique, we provide the calibration standards that serve as the "source of truth" for your optical system. This guide will show you exactly how to choose the right stage micrometer or reticle set to ensure every measurement is accurate and traceable.
Step 1: Which Microscope Calibration solution do you need?
Scenario A: "I need to calibrate my digital imaging software."
You are using a digital microscope camera and need to ensure that the "lines" you draw on your screen represent actual physical distances.
The Solution: You only need a Stage Micrometer.
This serves as the master ruler that "teaches" your software the correct pixel-to-micron ratio at every magnification level.
Scenario B: "I need to measure samples directly through the eyepieces."
You want to perform manual measurements without a computer, using a scale that overlays your specimen.
The Solution: You need a Calibration Set (Stage Micrometer + Eyepiece Reticle).
You cannot use a reticle accurately without a stage micrometer to verify its value at each objective power (4x, 10x, 40x, 100x).
Scenario C: "I need to perform specialized counting or area analysis."
You are performing specialized tasks like cell counting, particle distribution analysis, or grain sizing.
The Solution: The Professional 7-Piece Set. This provides specialized geometries (grids, concentric circles, and cross-hairs) required for advanced metrology that a standard linear scale cannot handle.
Step 2: Choose Your "Source of Truth" (The Stage Micrometer)
All Labnique micrometers are etched on high-transparency optical glass with vacuum-deposited chrome. Choose your model based on your required complexity:

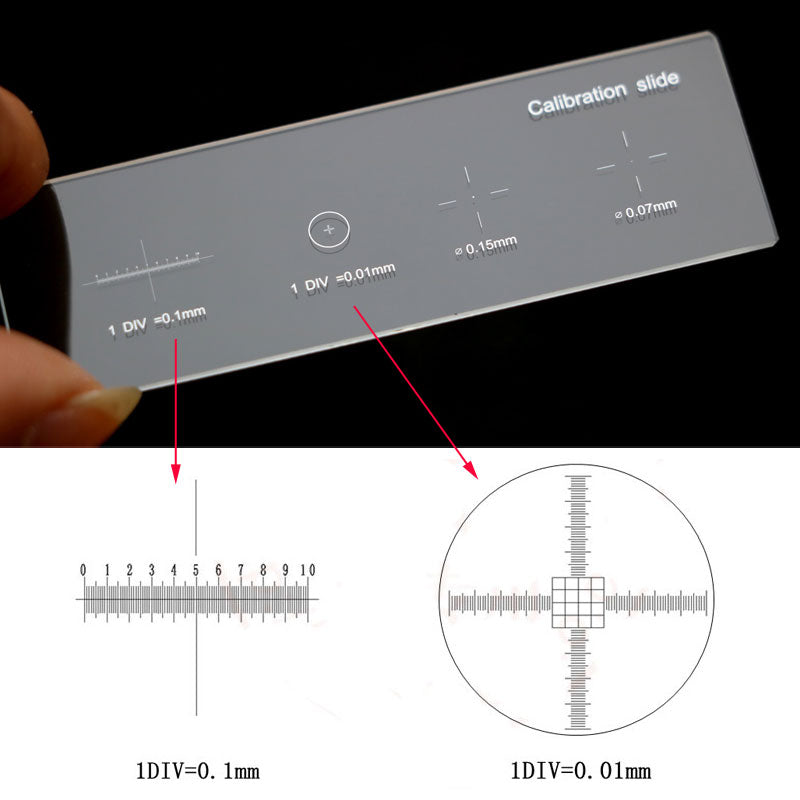

For Standard Calibration: TCM-H
- Best for: Routine compound microscope calibration.
- Features: 4 scales on one slide (0.01mm and 0.1mm resolution) plus concentric circles.
Shop the TCM-H Microscope Stage Micrometer Calibration Slide Now:
For Advanced Metrology: TS-M2
- Best for: Industrial inspection and high-precision area analysis.
- Features: 5 scales, including a specialized 0.01mm grid and four defined dots.
Shop the Microscope Stage Micrometer Calibration Slide, TS-M2, 5 Scales, 0.01mm Resolution now!
Step 3: Choose Your "Bridge" (The Eyepiece Reticle)
If you are choosing an eyepiece reticle (ocular micrometer), you must match the physical diameter to your microscope's internal shelf.
|
If you have this setup... |
Use this Labnique Solution |
Compatibility Notes |
|
Standard Biological Microscope |
The industry standard for most 23.2mm eyepiece tubes. |
|
|
Stereo or Wide-Field Microscope |
Check your manual: Wide-field eyepieces often require larger diameter discs. |
|
|
New Workstation Setup |
Includes the Stage Micrometer and a 19mm linear reticle in one cost-effective kit. |
|
|
Multi-Department Lab |
Includes the Stage Micrometer and 6 specialized reticles for every possible application. |
Summary Checklist: What's in your cart?
To complete your precision upgrade, ensure you have:
- The Master Standard: A Stage Micrometer (TCM-H or TS-M2) to provide the known distance.
- The Measurement Tool: An Eyepiece Reticle (if performing manual measurements).
- The Correct Fit: Verified that the reticle diameter (Ø 19mm is standard) matches your eyepiece.
About Labnique
Located in Maryland, Labnique has served the scientific community for over 10 years. We provide reliable, high-performance instruments and calibration standards at competitive prices to help your research reach its full potential.
Ready to standardize your measurements? Explore the Labnique Calibration Collection
Need technical assistance? Contact our engineering team for help matching a reticle to your specific eyepiece model.
