Microscope Stage Calibration Slide, Eyepiece Micrometer, Microscope Eyepiece Graticules, Ocular Micrometer, Cross Line Reticle (Set of 7)

The Labnique 7-Piece Calibration Set is the definitive solution for high-level optical metrology and comprehensive microscope standardization. This professional-grade kit combines a high-precision stage micrometer with six specialized eyepiece reticles, including cross-line, grid, and multi-scale configurations. Engineered from premium optical glass with vacuum-deposited chrome etching, this set allows laboratories to standardize measurements across multiple departments and diverse magnification requirements, ensuring absolute accuracy for both manual observation and digital imaging analysis.

Complete your workstation with these compatible Labnique essentials:

• Digital Microscope Camera for high-resolution imaging and software-based measurement calibration.

What’s in the Box?

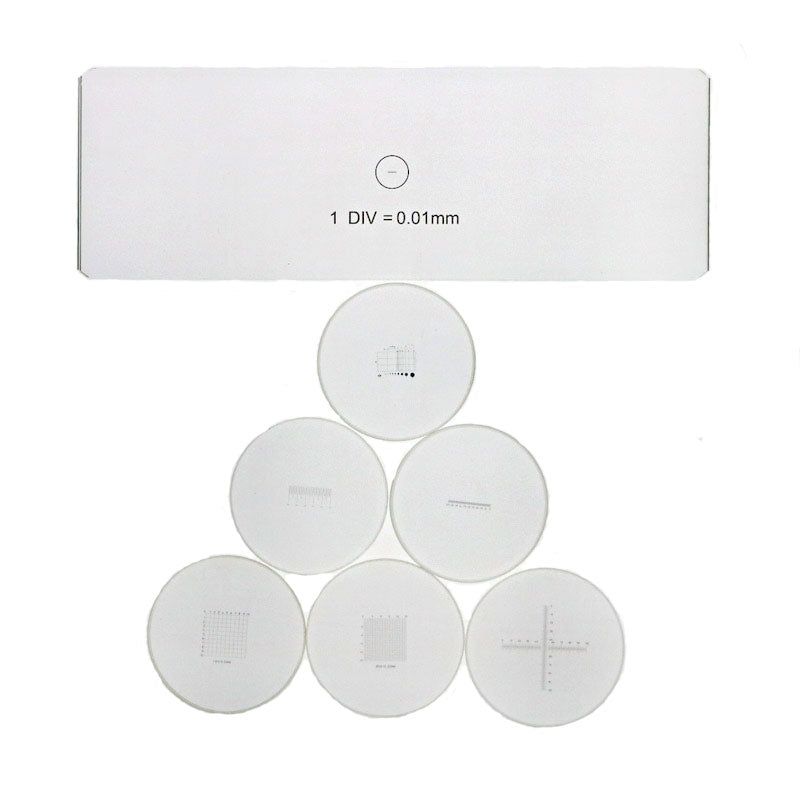

• 1 x Stage Micrometer Calibration Slide: 75 x 25 mm optical glass slide with a 1 mm scale divided into 100 parts (0.01 mm resolution).

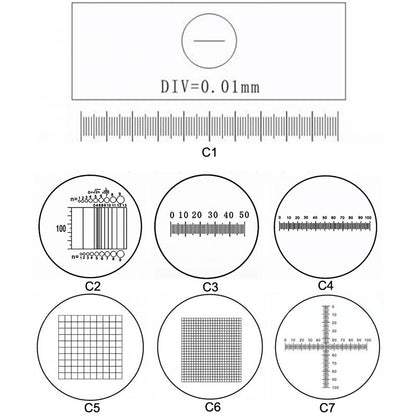

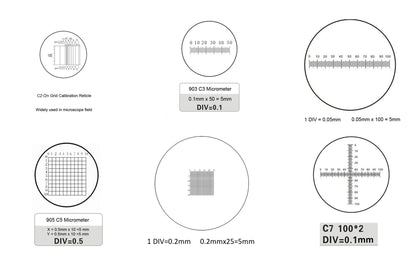

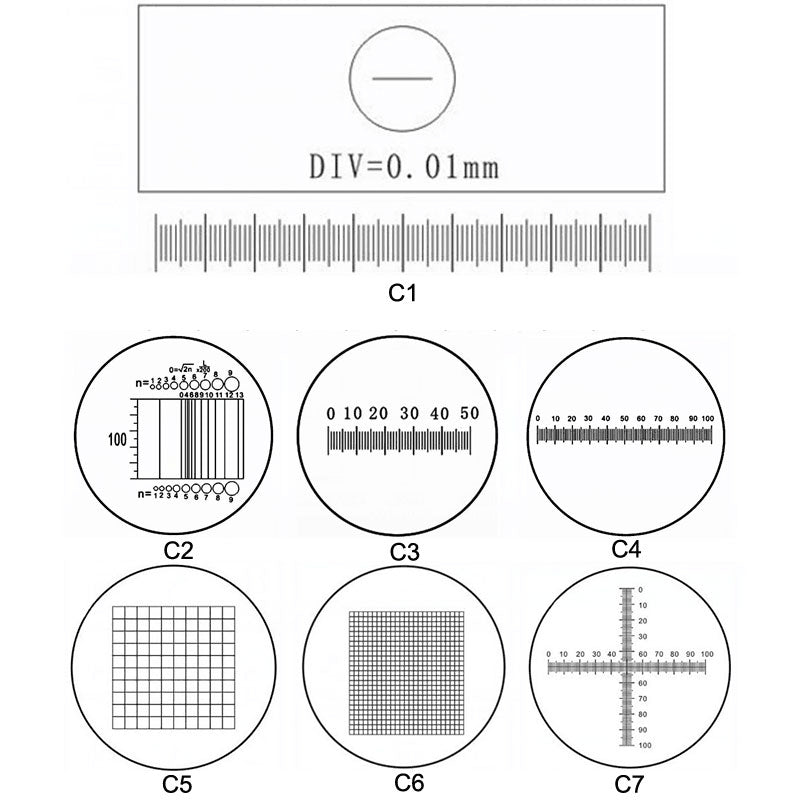

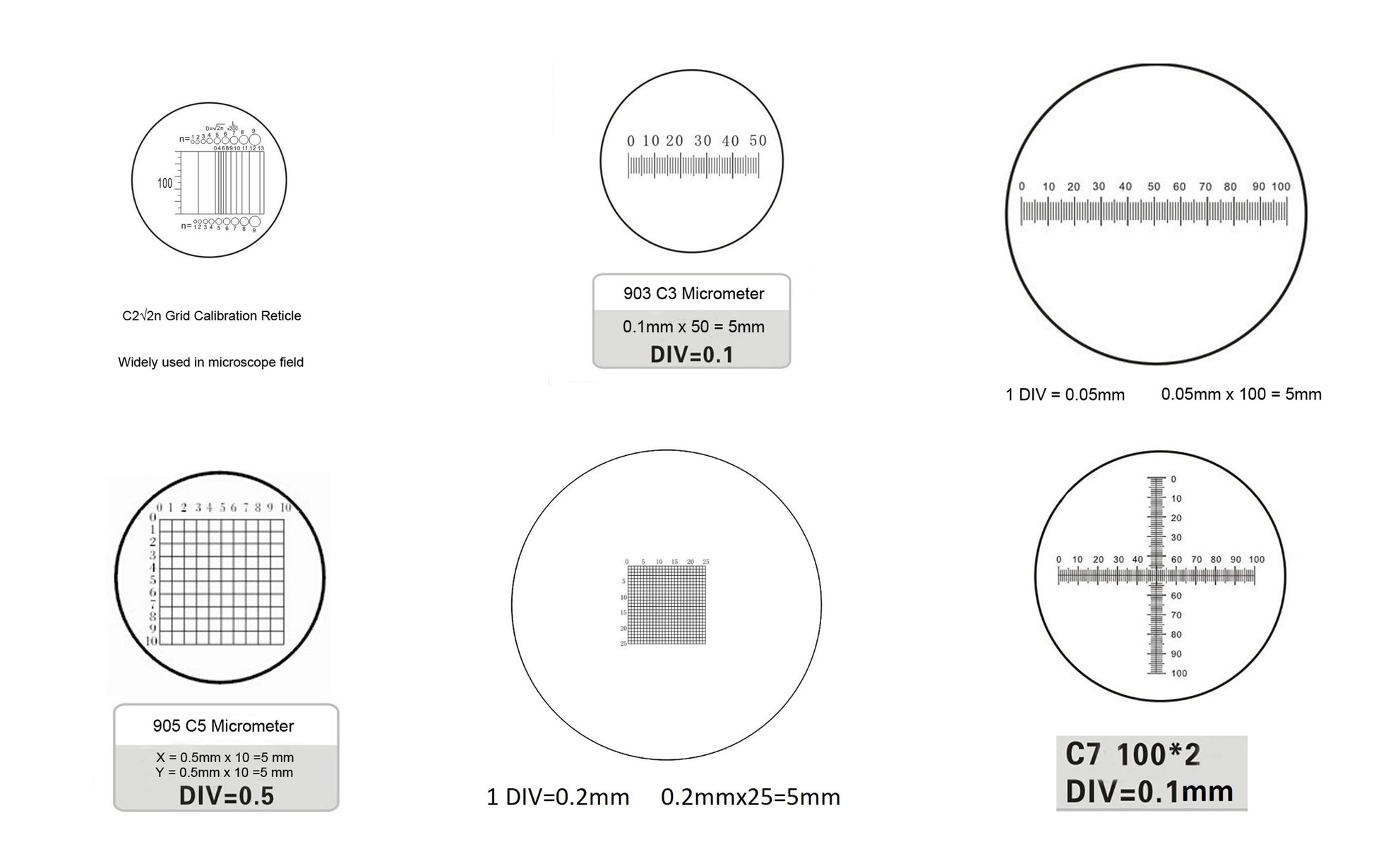

• 6 x Specialized Eyepiece Micrometer Reticles: A curated selection of 19 mm diameter glass discs (standard size) including:
• Cross-line Reticle: For center-point alignment and coordinate measurement of 0.1 mm resolution.
• Linear Scale (10mm/100): 0.1 mm resolution for standard horizontal measurement.
• Grid Reticle: For area counting and particle distribution analysis.
• Multi-Scale / Concentric Circles: For radius and diameter verification.

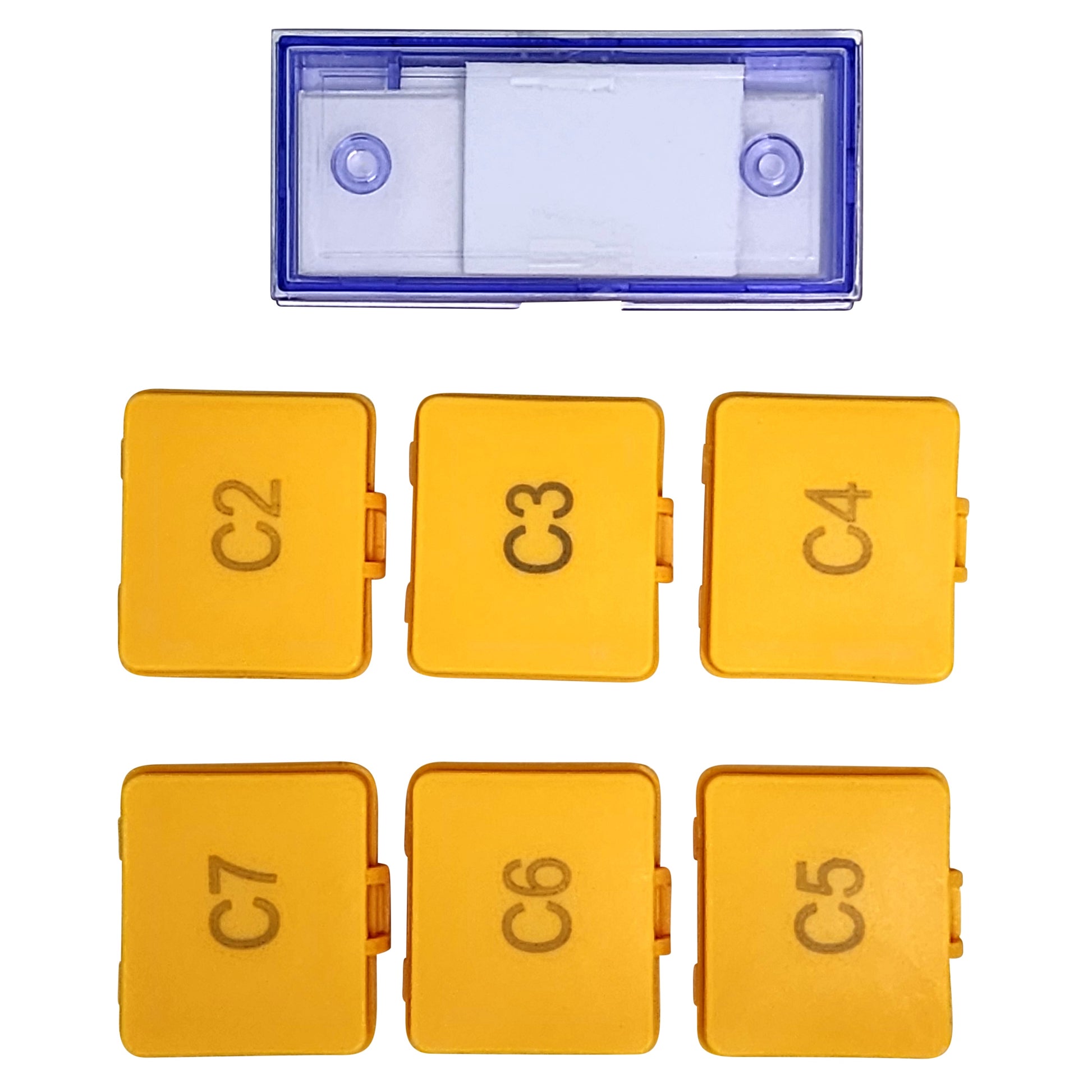

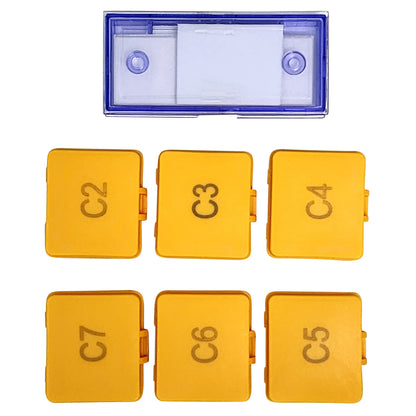

• 7 x Protective Storage Cases: Individual padded containers for each component to prevent surface abrasions and maintain optical integrity.

Technical Data:

• Kit Composition: 1 Stage Micrometer + 6 Eyepiece Reticles
• Slide Dimensions: Standard 75 x 25 x 1.1 mm
• Reticle Diameter: 19 mm (Please verify eyepiece compatibility before installation)
• Material: High-transparency optical glass
• Stage Scale Resolution: 0.01 mm
• Eyepiece Resolutions: 0.1 mm and 0.05 mm (model dependent within set)
• Etching Method: High-contrast chrome-on-glass vacuum deposition
• Calibration: Production is periodically calibrated to ensure accuracy (no individual certificate included).


Applications:  Scientific laboratory, industrial and mining, food processing, biochemistry, agriculture, petrochemical engineering and pharmaceutical industry.
