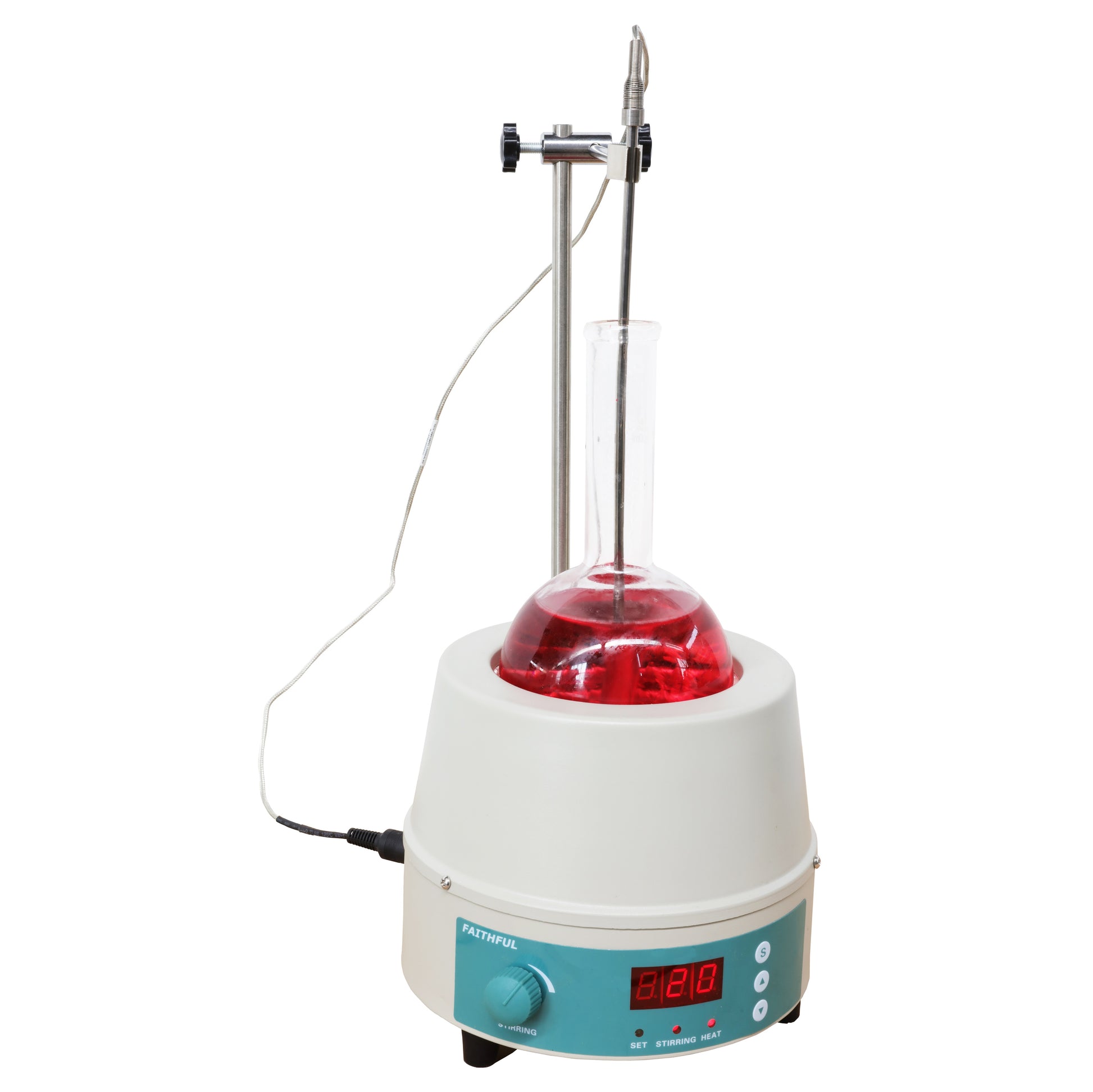

The Digital Heating Mantle 500ml is a precision dual-action instrument designed for simultaneous heating and magnetic stirring of liquid solutions. Equipped with a PID single-screen controller and an external PT100 temperature sensor, it ensures uniform thermal distribution and stable, repeatable results up to 250°C. This industrial-grade tool is essential for complex laboratory procedures including distillation, chemical synthesis, and evaporation.
What’s Included:
- Digital Heating Mantle (98-III-B)
- External PT100 Temperature Probe for high-accuracy PID monitoring
- 25mm Magnetic Stirring Bar for consistent vortex generation
- Supporting Rod and Adjustable Sensor Rack
- Power Cord
Complete your workstation
Enhance your setup with these compatible Labnique essentials:

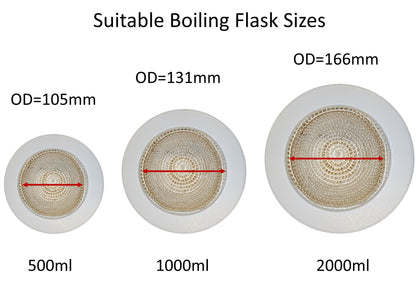

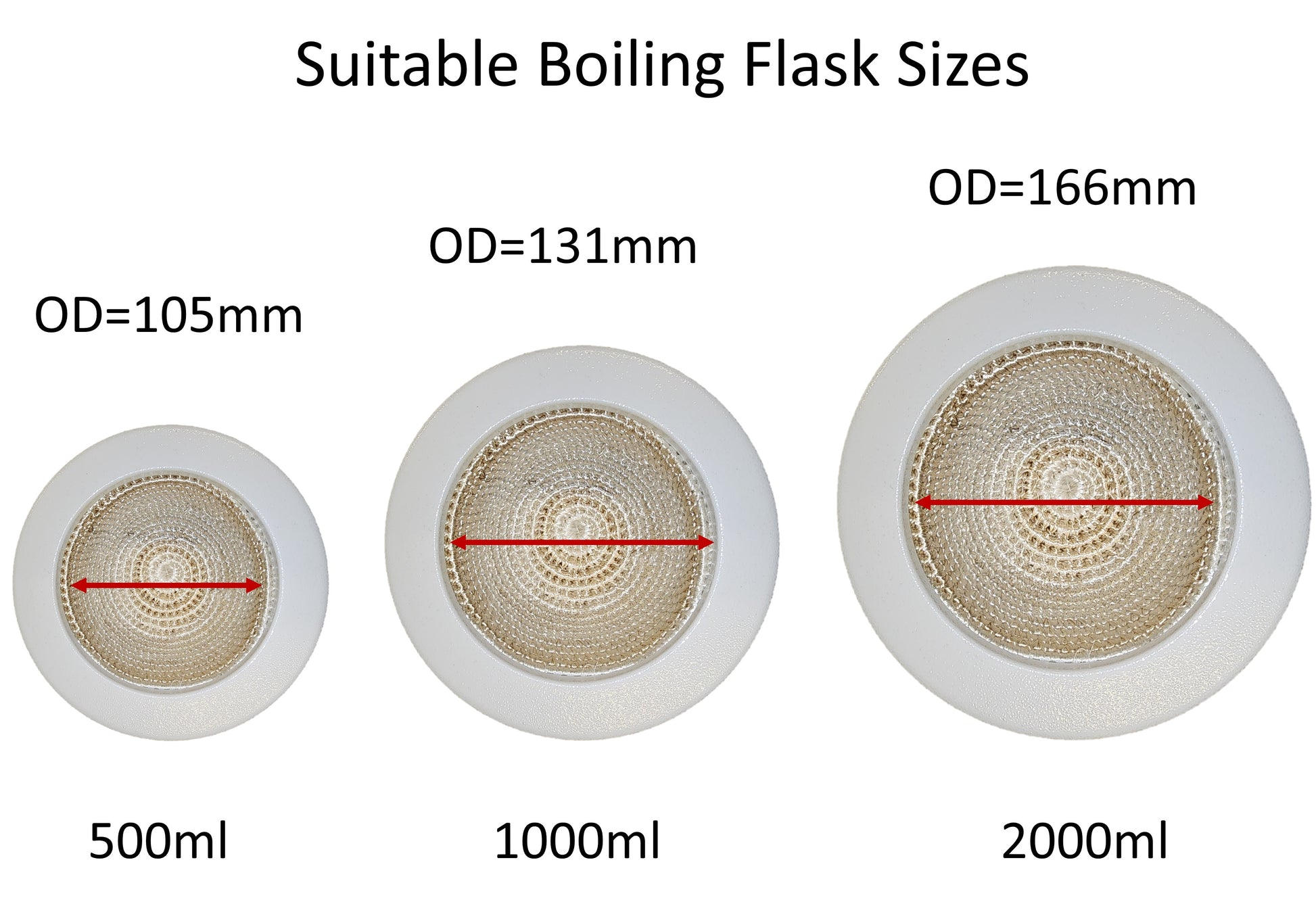

- 500ml Round Bottom Boiling Flask (Pack of 8) for optimal heat transfer and fit.
- Magnetic Stirring Bar Retriever to retrieve stir bar from containers up to 10L.
- Digital Scientific Thermometer (up to 300°C), perfect for secondary temperature verification.

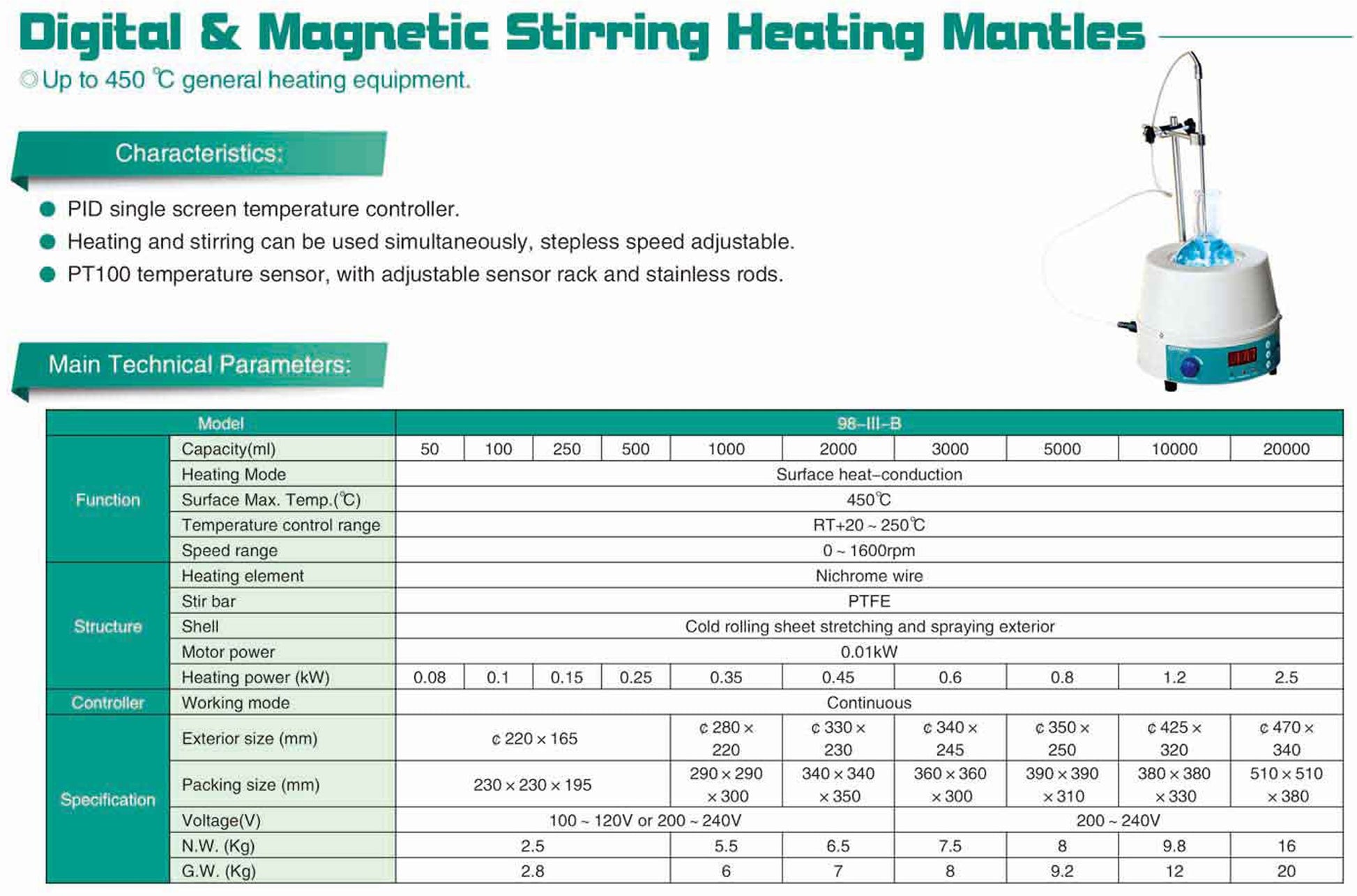

Technical Data
- Capacity: 500ml
- Heating Mode: Surface heat-conduction
- Maximum Surface Temperature: 450°C
- Temperature Control Range: RT + 20 to 250°C

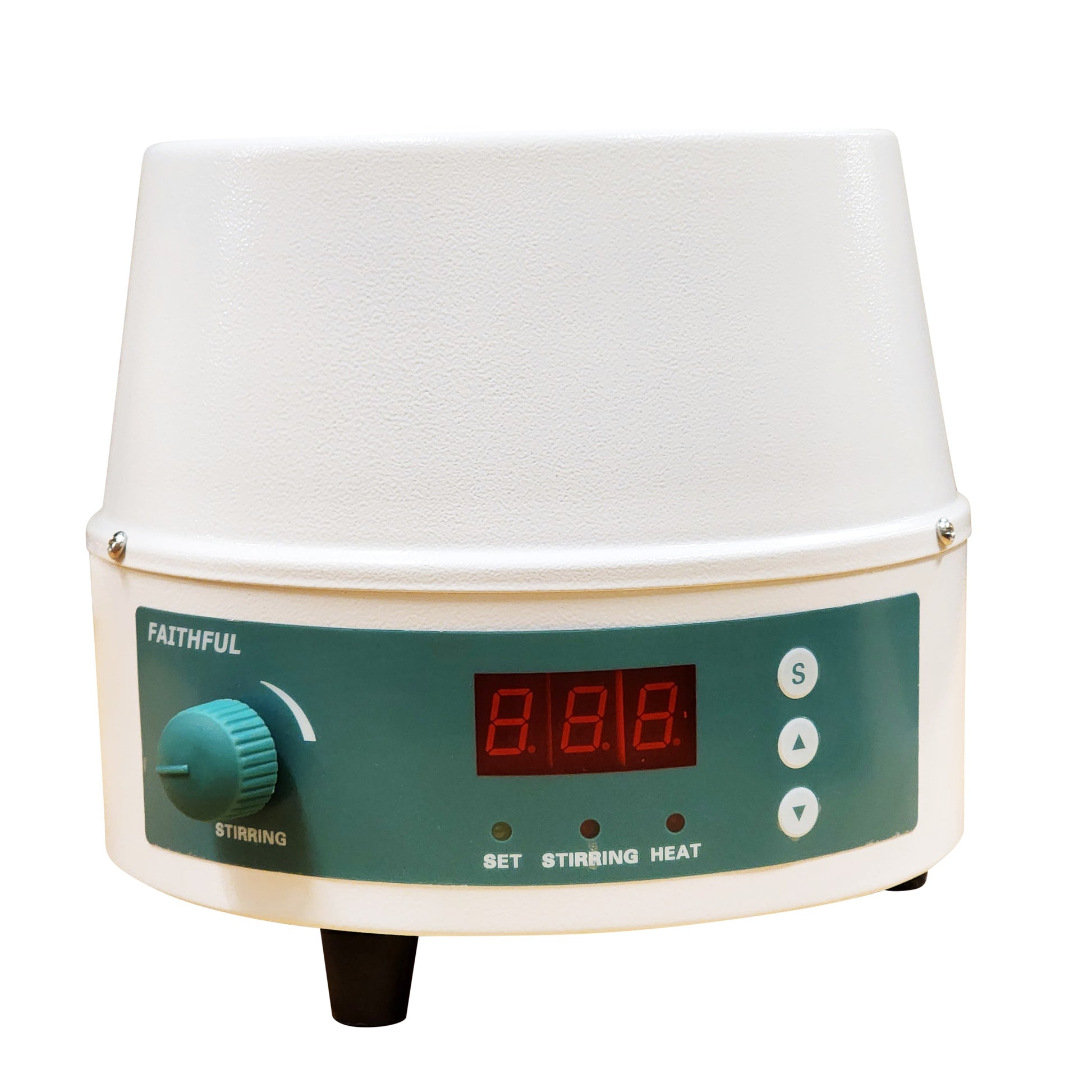

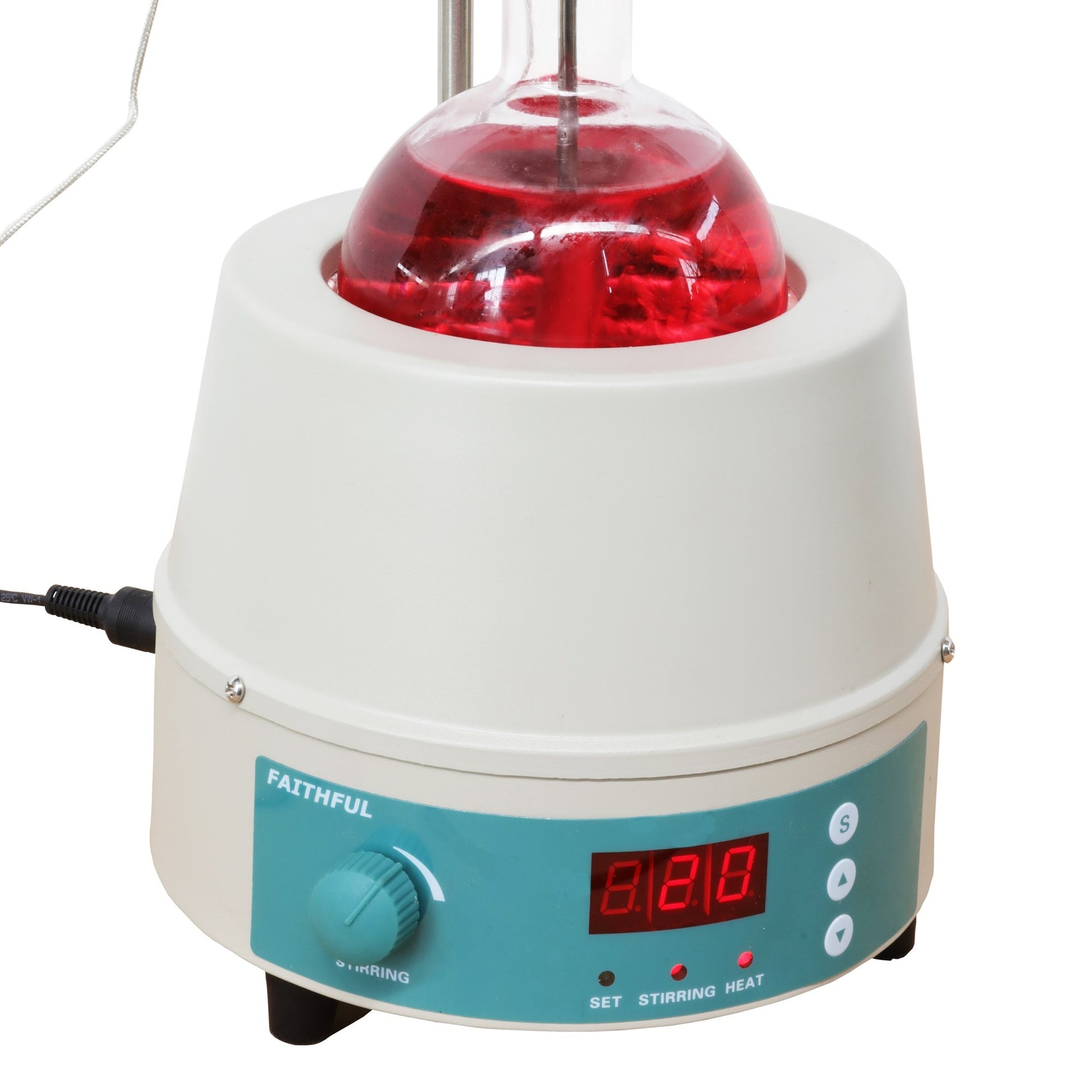

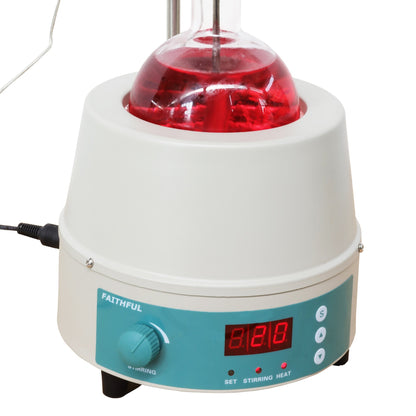

- Temperature Controller: PID single-screen digital display
- Temperature Sensor: PT100 (includes adjustable sensor rack and stainless steel rods)
- Speed Range: 0–1600rpm (Stepless speed adjustment)
- Stir Bar Size: 25mm

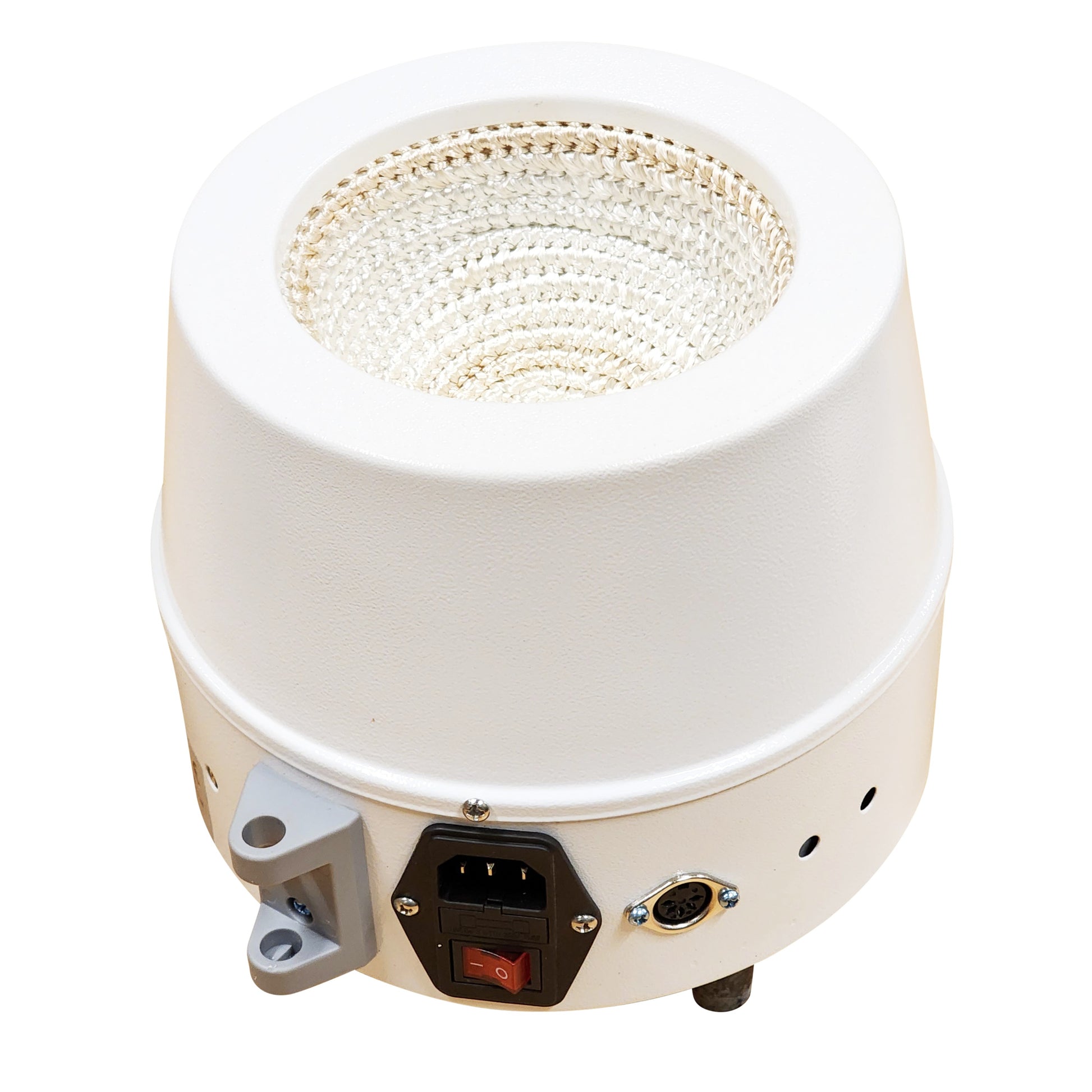

- Heating Element: Nichrome wire
- Stir Bar Material: PTFE
- Shell Material: Cold-rolled sheet stretching and spraying exterior
- Motor Output Power: 0.01kW (10W)
- Heating Power: 0.25kW (250W)
- Operation Mode: Continuous (Simultaneous heating and stirring supported)
- Exterior Size (mm): 230 (diameter) x 190
- Packing Size (mm): 240 x 240 x 240
- Voltage: 110V (100–120V)
- Net Weight (N.W.): 3.5kg
Applications:
Scientific laboratory, industrial and mining, food processing, biochemistry, agriculture, petrochemical engineering, and pharmaceutical industry.
